Name: 6.5 Inch Plunge-Cut Track Saw, 6.1A
Brand: Tool
SKU: 106
Availability: InStock

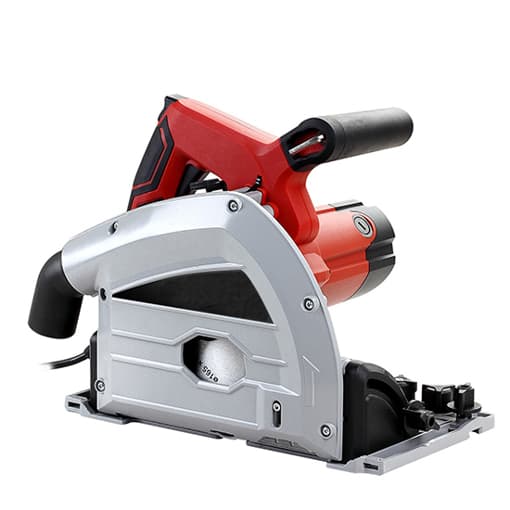

6.5 Inch Plunge-Cut Track Saw, 6.1A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

31 People watching this product now!

The track saw is a type of electric circular saw, which has a metal rail, working method is plunge cutting. Saw blade diameter is 6.5 inch (165mm). It is the best plunge-cut track saw for woodworking.

Specification

Model	T-CS018A
Rated Voltage	230V/50Hz, 240V/60Hz
Input Power	1400W
Rated Current	6.1A, 5.8A
No-Load Speed	2000-5000 rpm
Saw Blade Diameter	6.5 inch (165mm)
Bore Diameter	20mm
Cutting Depth with Track	90°: 54mm 45°: 38mm
Cutting Depth without Track	90°: 59mm 45°: 42mm
Cutting Angle	-1°~48°
Weight	7 kg

Features

Plunge-cut track saw has flexible track adjustment, easy blade replacement, adjustable cutting depth.
Pre-cut setting for precise and clean cutting.
Plunge-cut track saw has close-to-wall cutting function. Anti-kickback and lock-on-track design.

Plunge-Cut Track Saw Structure Diagram

Plunge-Cut Track Saw Details

Plunge-Cut Track Saw Applicable Materials

Tips: What is a plunge-cut track saw?

Plunge-cut track saw is a common woodworking power tool that can make precise cutting along a straight line on boards with various sizes. It can also be said that this is an electric circular saw running on precision metal track.

The plunge-cut saw can move in a straight line on metal track. When using, first connect metal track to workpiece, align guide rail with mark, and set depth. Then put plunge-cut saw on guide track, insert it into workpiece, and move it forward along guide track to start sawing. Track can stabilize the plunge-cut saw, so there is no need to worry about the saw accidentally sliding off the marking line or moving away from it.
