Name: 6" Bench Grinder, 1/3 HP, 1.1A
Brand: Tool
SKU: 174
Availability: InStock

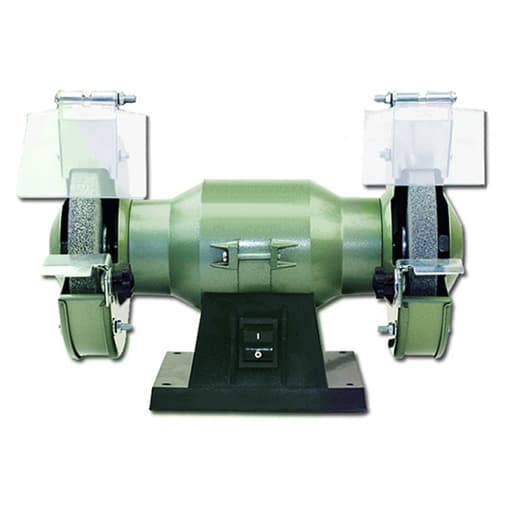

6″ Bench Grinder, 1/3 HP, 1.1A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

80 People watching this product now!

Best bench grinder for sale. Grinding wheel diameter is 6 inch (150mm). It is a small bench grinding machine with multifunction: tool sharpening, drill bit grinding, cutter sharpening, metal processing, stone processing, mini tool processing, etc.

Specification

Model	T-MD3215	T-M3215
Rated Power	1/3 HP (250W)
Rated Voltage	Single-Phase 220V	3-Phase 380V
RatedCurrent	1.1A	0.7A
No-Load Speed	2,850 rpm
Wheel Diameter	6 Inch (150mm)
Wheel Thickness	20mm
Wheel Hole Diameter	32mm
Wheel Type	brown corundum grinding wheel
Work Quota	40%
Temperature Rise	75℃
Weight	13 kg

Bench Grinder Structure Diagram

Bench Grinder Applications

Grinding tools
Grinding drill bits
Processing metal
Processing stone

Tips: Site requirements of bench grinder installation.

Opening direction of bench grinder should be face to wall as possible, not directly facing pedestrian passage or the place where there are equipment and operators nearby.
If bench grinder has been installed near equipment or beside passage, set a metal mesh with 1.8m height at a distance of 1~1.5m from opening position of grinder, to shield and isolate it.
Bench grinder must not be installed in corrosive gas or flammable and explosive places.
Bench grinder installation place should keep the ground dry.
Adequate lighting should be guaranteed at the bench grinder use site.
