Name: 6-Piece Socket Adapter Set, 1/4" 3/8" 1/2"
Brand: Tool
SKU: 398
Availability: InStock

6-Piece Socket Adapter Set, 1/4″ 3/8″ 1/2″

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

44 People watching this product now!

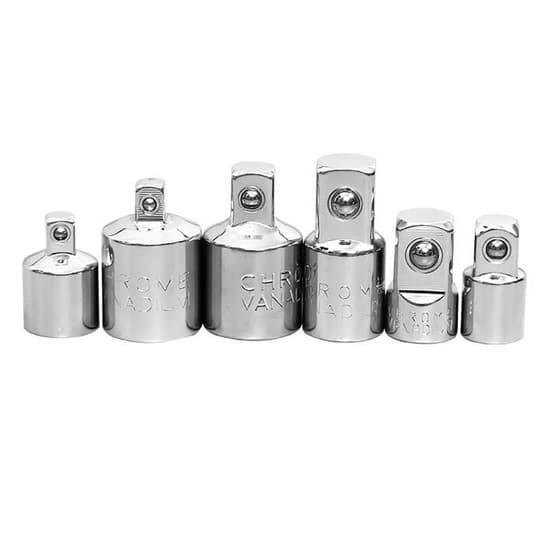

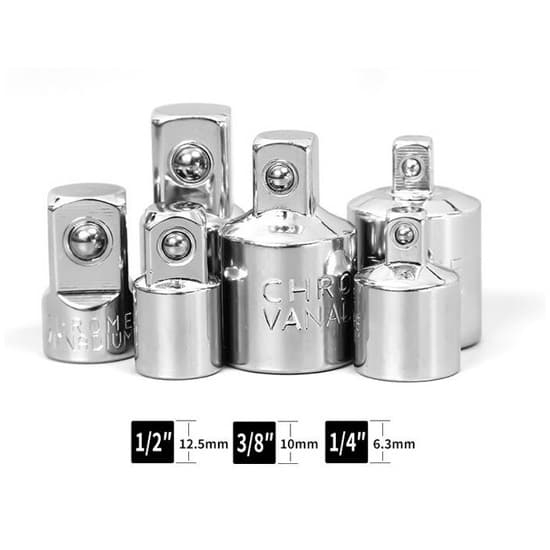

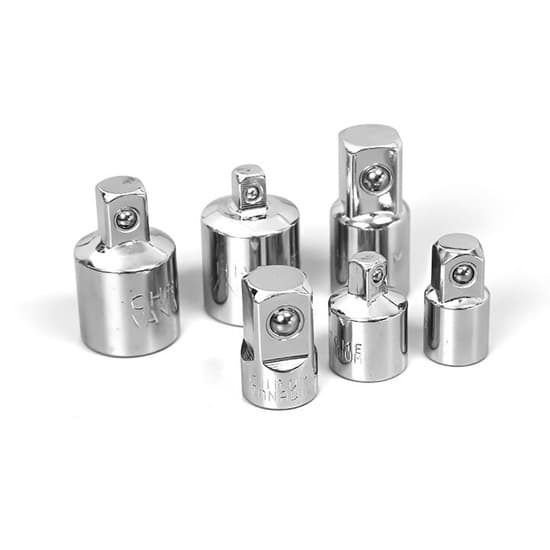

6 Pieces Socket Adapter Set includes 6pcs female to male socket adapters 1/2″ to 3/8″, 3/8″ to 1/2″, 3/8″ to 1/4″, 1/4″ to 3/8″, 1/2″ to 1/4″, 1/4″ to 1/2″, made from chromium vanadium steel for great strength and durability and chrome polishe finish for corrosion resistance, best socket adapter set for ratcheting wrench.

Specification

Model	T-RS-6SA
Drive Size	1/4 inch, 3/8 inch, 1/2 inch
Number of Pieces	6
Size	1/2″ to 3/8″	3/8″ to 1/2″	3/8″ to 1/4″	1/4″ to 3/8″	1/2″ to 1/4″	1/4″ to 1/2″
Length	34mm	35mm	25mm	25mm	33mm	46mm
Weight	50g	45g	20g	20g	45g	30g
Material	Chromium vanadium alloy steel
Finish	Polished chrome
Package Included	Socket adapter 1/2 in. to 3/8 in, 3/8 in. to 1/2 in, 3/8 in. to 1/4 in, 1/4 in. to 3/8 in, 1/2 in. to 1/4 in, 1/4 in. to 1/2 in.
For Use With	1/4″, 3/8″, 1/2″ Drive Ratchet

Note: Specifications are approximate.

Dimensions

Tips: Difference between a 45 teeth ratchet and a 72 teeth ratchet

What are differences between a 45 teeth ratchet and a 72 teeth ratchet? The force tolerance of two types of teeth is different, and the ratchet have different material requirements and different characteristics.

1. Different force tolerance.
45 teeth ratchet are better than 72 teeth ratchet. With fewer teeth, the force-bearing area is larger, and the occlusion area between the teeth and the pawl is larger.

2. Different material requirements.
The 72 teeth ratchet have high requirements on the material. The high density of the teeth facilitates the verification of the ratchet.

3. Different characteristics
45-tooth ratchet features: short-tooth gear addendum coefficient 0.8, head clearance coefficient 0.3; short-tooth gears can adopt a larger positive displacement, so that the minimum number of gear teeth can be reduced (less than 17 teeth), and It will not cause the tip of the tooth to become sharp, undercut, etc., but it will reduce the coincidence coefficient of the gear mesh.75-tooth ratchet wrench features: addendum height coefficient 1, head clearance coefficient 0.25.

However, the torque is the same. The number of teeth should refer to the number of teeth of the ratchet on the head of the wrench. 72 teeth and 45 teeth have no effect on the torque value.
