Name: 7-1/4 Inch Hand-Held Electric Circular Saw, 6.6A
Brand: Tool
SKU: 103
Availability: InStock

7-1/4 Inch Hand-Held Electric Circular Saw, 6.6A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

35 People watching this product now!

Handheld electric circular saw with φ7-1/4 inch (185mm) blade. 1450W power of industrial-grade performance. Compact structure with small size, portable and easy to operate. Applicable sawing materials include MDF, bamboo plywood, plywood, solid wood, solid wood plate, PVC pipes, etc.

Specification

Model	T-XMY01-185
Rated Voltage	220V/50Hz, 240V/60Hz
Rated Power	1450W
Rated Current	6.6A, 6.0A
No-Load Speed	4,500 rpm
Blade Diameter	7-1/4 inch (185mm)
Cutting Capacity	90°: 0-63.5mm 45°: 0-44mm
Weight	4 kg

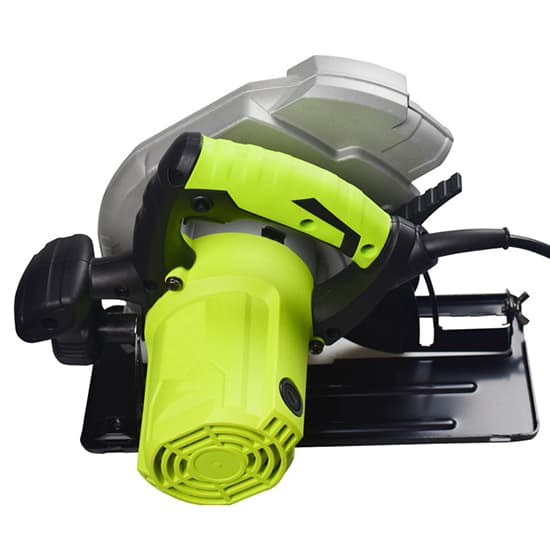

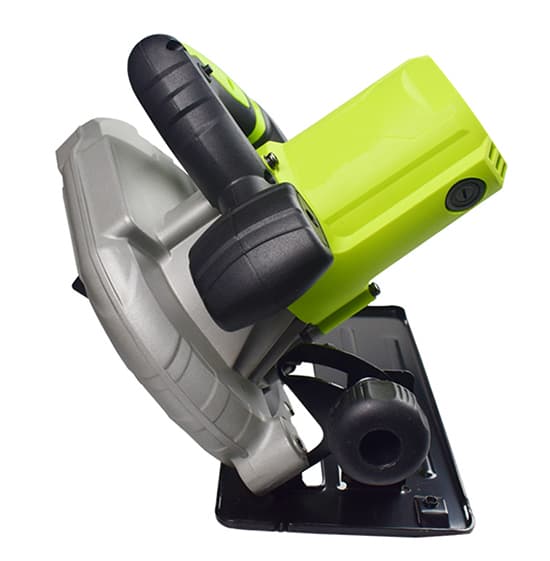

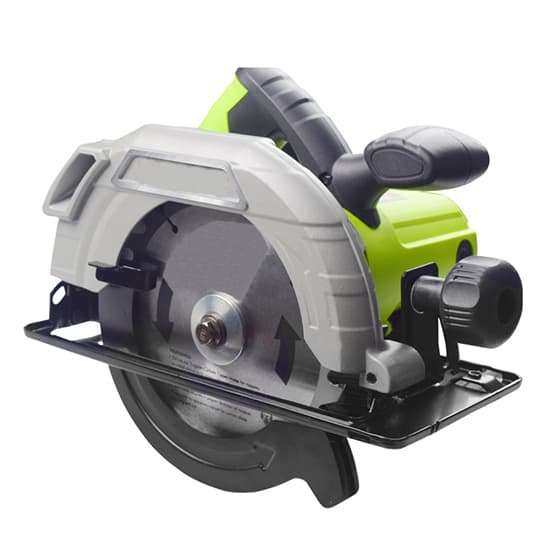

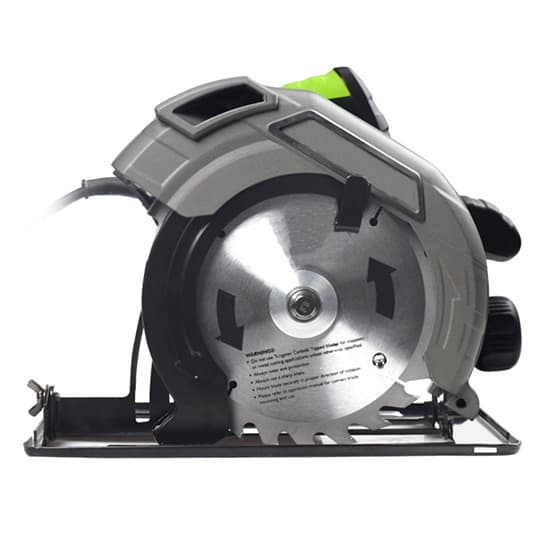

Hand-Held Electric Circular Saw Details

Hand-Held Electric Circular Saw Applicable Materials

Tips: How to prevent overload for the hand-held electric circular saw?

When using handheld electric circular saw, always pay attention to the sound and temperature rise. When machine is used for a long time, temperature rises above 60℃, and its body is hot or has a burning smell, stop it for inspection immediately and cool down.
Do not touch the cutting tool by hand when the handheld electric circular saw is in operation. If it is found to have blunt, damaged and abnormal sounds/conditions, immediately stop electric circular saw for inspection.
Before repairing blunt saw blade or replacing parts, cut off power supply and wait for the saw blade to stop completely.
Once the abrasion of motor carbon brush exceeds the limit, it will malfunction. Therefore, the worn out carbon brushes should be replaced immediately and keep carbon brushes be clean.
