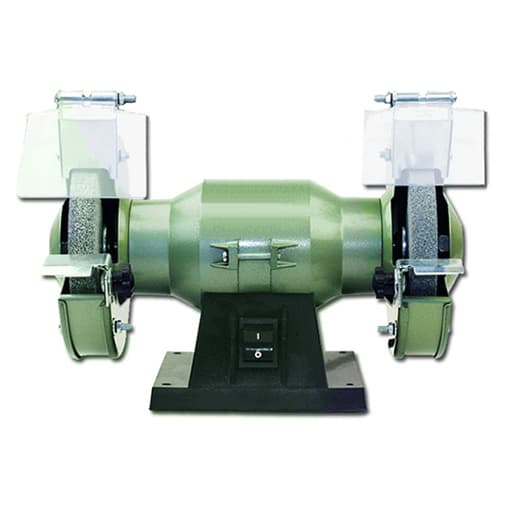

The bench grinder has a grinding wheel of 8 inch (200mm) diameter. It is a small bench grinding machine can be used on table. Grinding, polishing, milling tools, drill bits, metal, stone and so on.

Specification

Model	T-M3220	T-MD3220
Rated Power	2/3 HP (500W)
Type	Light-duty, Heavy-duty	Normal
Rated Voltage	3-Phase 380V	Single-Phase 220V
RatedCurrent	1.3A	2.3A
No-Load Speed	2850 rpm
Wheel Diameter	8 Inch (200mm)
Wheel Thickness	20mm
Wheel Hole Diameter	32mm
Wheel Type	brown corundum grinding wheel
Work Quota	40%
Temperature Rise	75℃
Weight	18 kg (light-duty), 30 kg (heavy-duty)	18kg

Bench Grinder Functions

Grinding tools: Grinding and polishing scissors and other tools.
Grinding drill bits: Grinding and dressing drill bits and mechanical parts.
Metal processing: Grinding, milling and polishing metal parts.
Stone tool processing: grinding and polishing stone tools.

Bench Grinder Structure Diagram

Tips: What to do if bench grinder motor does not rotate?

Bench grinder motor does not rotate, but there is electromagnetic sound.
Reasons	Starting capacitor is damaged. Phase failure of 3-phase power supply. Power switch is damaged. Bearing is stuck. Winding is burnt out.	Solutions	Replace with a new capacitor. Check and repair circuit. Replace power switch. Replace bearing. Repair winding.
Bench grinder motor does not rotate and no electromagnetic sound.
Reasons	Power switch is damaged. Power supply is cut off or the site is out of power. Winding is burnt out.	Solutions	Replace power switch.2. Find a new power source. Find a new power source. Repair the winding.
