85mm Electric Circular Saw with Laser, 240V
Price range: $38.99 through $54.07
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |

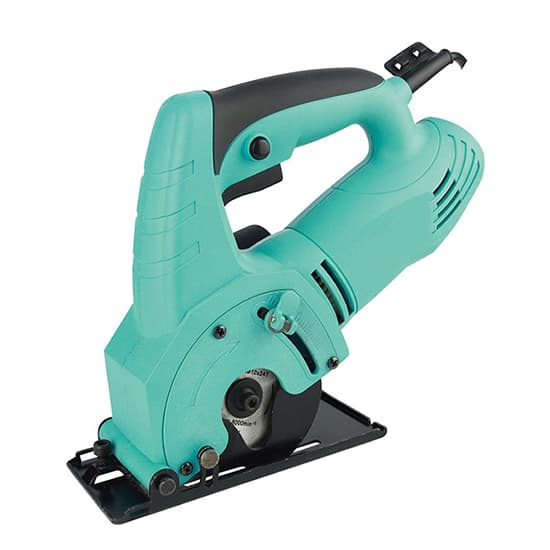

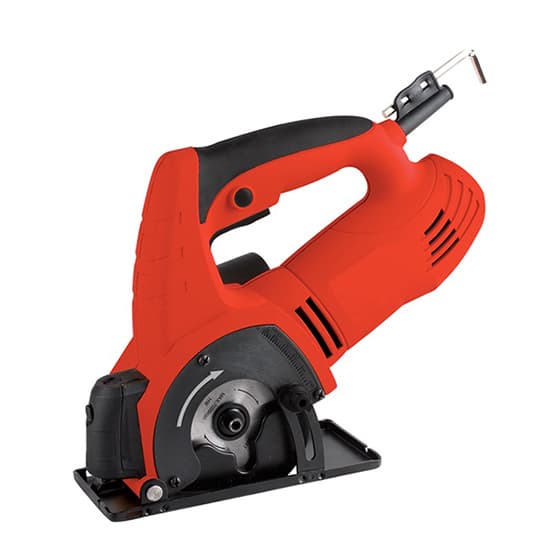

Cheap electric circular saw with φ85mm (3-1/3 inch) blade and laser function. It is a handheld circular saw with compact structure and small size. Power supply supports 230V/240V.
Specification
| Model | T-MCS002A | T-MCS002B |
| Laser Function | no | yes |
| Rated Voltage | 240V/60Hz, 230V/50Hz | |
| Input Power | 600W | |
| Rated Current | 2.5A, 2.6A | |
| No-Load Speed | 5500 rpm | |
| Blade Diameter | 85mm (3-1/3 inch) | |
| Max. Cutting Width | 10mm | |
| Cutting Capacity | 0-22mm | |
| Accessories | 3 saw blades, 1 dust tube, 1 tool for saw blade change | |
| Color | Random | |
| Weight | 3 kg | |
Features
- The electric circular saw can cut plywood, wood, plastic, aluminum and tile piece.
- Laser guide of the electric circular saw can make wonderful line cutting.
- Anti-lock safety switch make the electric circular saw safety in operation.
Electric Circular Saw Applicable Materials
Electric Circular Saw Dimension Drawing
Electric Circular Saw Details
Tips: What is an electric circular saw?
Electric circular saw is a power tool that powered by single-phase universal motor, transmission mechanism drives circular saw blade for sawing. It is safe, reliable, and efficient. Electric circular saw adopts top handle-type appearance structure, which is mainly composed of motor, reduction box, protective cover, adjustment mechanism, base plate, handle, switch, non-reconnectable plug, and circular saw blade, etc. It is suitable for sawing wood, fiberboard, plastic and flexible cables as well as other similar materials.
| Laser Guided Function * | , |
|---|---|
| Rated Current * | , |
