Name: Adjustable Hook Spanner Wrench
Brand: Tool
SKU: 461
Availability: InStock

Adjustable Hook Spanner Wrench

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

22 People watching this product now!

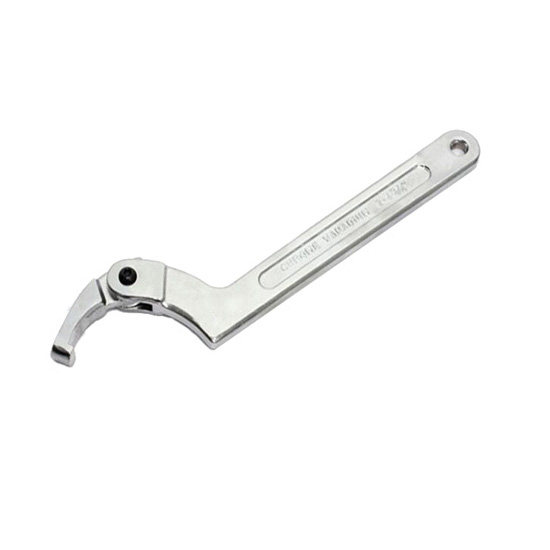

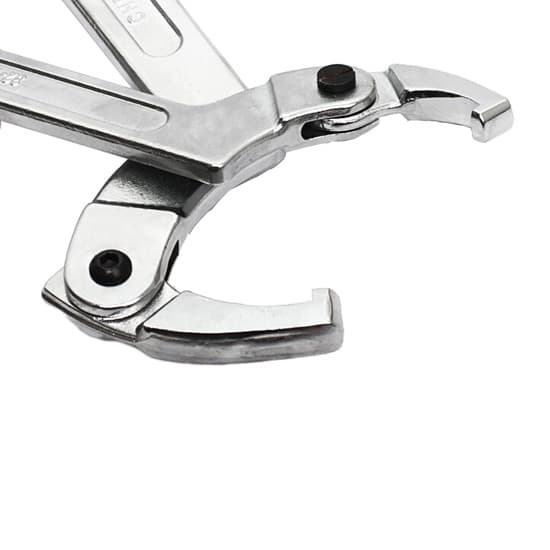

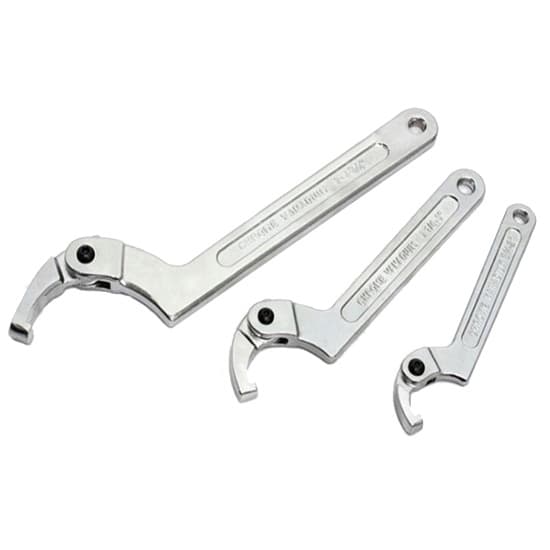

With high-quality chrome vanadium steel construction, adjustable hook spanner wrench provides maximum strength and durability with selectable jaw capaicty 19-51mm, 32-76mm, 51-120mm and 115-170mm. The adjustable hook wrench is designed for adjusting collars, lock nut rings and bearings in the machine tool, automotive, mechanical equipment, etc.

Specification

Model	T-WR4101H	T-WR4102H	T-WR4103H	T-WR2665H
Type	Hook
Size (Jaw Capacity)	3/4″~2″ (19-51mm)	1-1/4″~3″ (32-76mm)	2″~4-3/4″ (51-120mm)	4-1/2″~6-1/2″ (115-170mm)
Overall Length	160mm	200mm	270mm	310mm
Material	Chrome vanadium alloy steel
Weight	133g	242g	500g	692g

Note: The sizes are approximate.

Dimensions

Tips: Types of wrenches or spanners

There are basically two types, one is a wrench that has a fixed opening size marked on it, while the other is a wrench with adjustable opening size.

1. Open end wrench
The spanner has an opening of fixed size at one end or both ends for turning nuts or bolts of a certain size.

2. Box end wrench
The working end with a 6-point box or 12-point box at both ends, and the box end spanner is suitable for narrow or tight spaces when ordinary spanner cannot be used.

3. Combination wrench
The combination wrench is a combination of an open end and a box end. Both ends are used to turn the bolt or nut of the same specification.

4. Adjustable wrench
The opening of adjustable wrench can be adjusted within a certain size range, and can be used to tighten or loosen bolts or nuts of different specifications.

5. Hook spanner wrench
Hook wrench, also known as hook spanner, C-spanner, usually has an end with a hook, used for turning flat nut whose thickness is limited.

6. Ratcheting wrench
The ratcheting wrench is especially suitable for fastening or loosening bolts or nuts in very tight space. It usually features 6-point box end or 12-point box end with 45 teeth, 72 teeth, etc.

7. Hex key
Hex key, Allen wrench or Allen key, L-shaped hexagon bar wrench, is used for tightening or loosing hexagon socket screw. The type of hex key is in accordance with the size of the opposite side of the hexagon.

8. Torque wrench
The torque wrench can show the torque applied when turning a bolt or nut; or when the applied torque reaches a specified value, a light or sound signal is emitted. Torque wrenches are suitable for installation where the torque is clearly specified.
