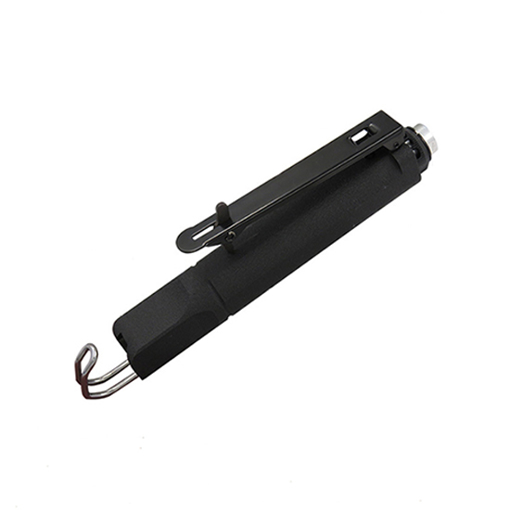

Air Body Saw, 0.3″ Stroke, 5000bpm
Original price was: $306.85.$92.99Current price is: $92.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Good price air reciprocating saw, has the cutting capacity of different material, 12mm file piece diameter, 6.35mm air inlet, 7cfm average air consumption, 5mm air hose. Frosted anti-skid design body, rear air port can rotate 360 degrees.
Specification
| Model | T-KP-752 |
| Stroke length | 0.3″ / 8mm |
| Strokes per minute | 5000bpm |
| No load speed | 5000rpm |
| Working pressure | 90 psi |
| File piece diameter | 12mm |
| Cutting capacity | 1.6mm steel/ 2.5mm aluminum |
| Air inlet size | 1/4 inch (6.35mm) |
| Average air consumption | 7cfm |
| Air hose size | 5mm |
| Dimension | 34*230mm |
| Net weight | 0.46kg |
| Package weight | 0.7kg |
| Package included |
1*Air file 1*Allen wrench 1*Inlet connection 1*12mm wide saw blade |
Details
Tips: What is an air body saw?
Air body saw, also known as pneumatic body saw, is a hand-held air tool that is driven by compressed air to reciprocate the saw blade at high speed, and then cut aluminum, rubber, wood and other plates in a straight line or curve. The compressed air enters the vane-type pneumatic motor through the rotary air throttle valve to make the rotor rotate. After the gear is decelerated, the saw blade at the lower end of the guide rod is driven by the crankshaft mechanism to make a linear high-speed reciprocating motion. In order to reduce the vibration caused by the high-speed movement of the guide rod up and down, the front of the air body saw is designed with a balance device. The main parameters of the air body saw are the maximum cutting thickness (cutting capacity), air consumption, working air pressure and the air inlet size.
