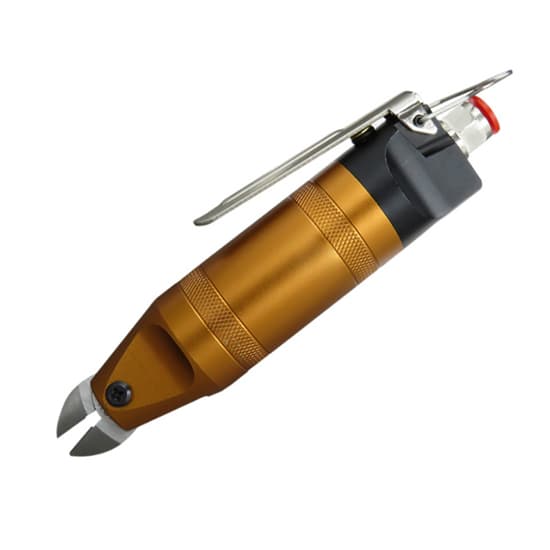

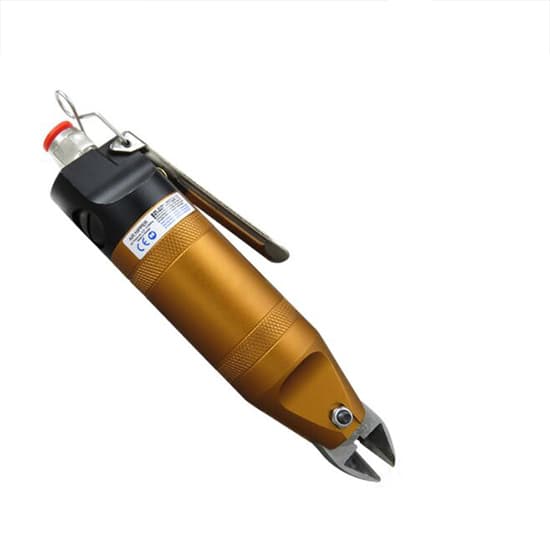

Name: Air Nipper, Cutting 3.3mm Copper Wire
Brand: Tool
SKU: 1158
Availability: InStock

Air Nipper, Cutting 3.3mm Copper Wire

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

74 People watching this product now!

Pneumatic air nipper for sale. Air cutter for cutting 3.3mm (maximum) copper. Compressed air as power, energy saving and environmental protection. 584cm³/ cycle air consumption, 73-87psi operating air pressure, 2740N applied pressure.

Specification

Model	T-HS30-S7P
Maximum Cutting Capacity	3.3mm Copper Wire 2.8mm Iron Wire 2.0mm Soft Stainless Steel Wire
Air Consumption	584cm³/ cycle
Operating Air Pressure	73-87psi
Applied Pressure	2740N
Recommended Hose Inner Diameter	5mm
Overall Length	230mm
Net Weight	0.91kg
Package Weight	1.2kg

Details

	A. overall length: 127mm
	B. thickness: 17mm
	E. working length of blade: 30mm
	F. working angle of blade: 25°
	G. V-shaped upper end: 9mm
	H. V-shaped bottom end: 4mm
	I. maximum width of knife arm: 37mm
	J. maximum thickness of knife arm: 17mm
	K. minimum thickness of knife arm: 2mm
	L. front end length of screw hole: 43mm
	width of closed shear: 35mm
	extending length: 33mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips

1. Using tips for air nipper to cut 3.3mm copper wire

Make sure the air pressure (air compressor) is turned off before installing the blade and the body of the air cutter.
Confirm that the air pressure specified by the air scissor body should not be lower or exceed the specified air pressure (73-87psi). (Different models of air scissors use different working pressures.)
Try to use the middle value of the working length range of the pneumatic nipper blade.
After the pneumatic scissor is used, the air pressure (air compressor) must be turned off.

2. Maintenance tips for pneumatic scissor cutting 3.3mm copper

The air compressor connected to the air nipper tool must be connected to a water filter device to prevent water vapor from rusting the blade and the body of the air nipper tool. The surface of the blade of the pneumatic scissor can be wiped with engine oil to prevent rust.
The inside of the air cutter body can be disassembled. First, wipe the spring and piston with a dry cloth and apply lubricating grease, and check whether the piston ring is aging.
If there is a problem with the cutting ability, please check whether the air pressure connected to the air shear is within the specified range of use, and whether the blade of the air shear is damaged or deformed.
