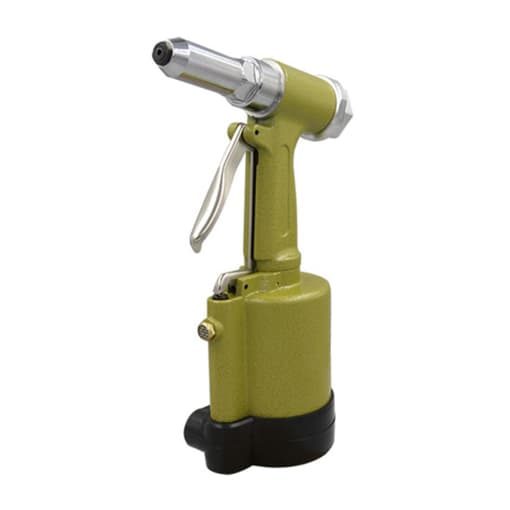

Air Pop Rivet Gun, 3/32″ – 3/16″, 90 PSI
Original price was: $107.68.$32.99Current price is: $32.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
The original nozzle diameter of the air pop rivet gun is 3/16″ (4.8mm). 3/32″ (2.4mm), 1/8″ (3.2mm) and 5/32″ (4.0mm) nozzles are included in the package. A combination wrench is as well as contained to help you replace the nozzle. A rivet container is used for collecting rivet tips. The pneumatic riveter tool is widely used in mechanical equipment, vessel, automobile, aeronautical facility, luggage production, automobile manufacture and so on.
Specification
| Model | T-ARG-245 | T-ARG-275 |
| Rivet Capacity | Aluminum Rivet: 3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm) | Aluminum Rivet: 3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm) |
| Steel Rivet: 3/32″, 1/8″ (2.4mm, 3.2mm) | Steel Rivet: 3/32″, 1/8″, 5/32″ (2.4mm, 3.2mm, 4.0mm) | |
| Working Pressure | 90 PSI (0.62MPa) | 90 PSI (0.62MPa) |
| Air Inlet Size | 1/4 inch (6.35mm) | 1/4 inch (6.35mm) |
| Air Consumption | 8 CFM | 5 CFM |
| Body Dimension | 165mm * 245mm | 165mm * 275mm |
| Color | Yellow | Blue/Yellow |
| Weight | 1.3kg | 1.45kg |
| Package Included | 1 PC Pneumatic Riveter 3 PCS Nozzles (3/32″, 1/8″, 5/32″) 2 PCS Combination Wrenches 1 PC Rivet Container |
1 PC Pneumatic Riveter 3 PCS Nozzles (3/32″, 1/8″, 5/32″) 2 PCS Combination Wrenches 1 PC Rivet Container |
Details
- Nozzle
- Frame Head
- Rivet Container
- Trigger
- Ergonomic Handle
- Air Outlet
- Cylinder
- Non-slip Rubber Pad
Dimension
Applications
Tips: How to fill hydraulic oil into the air pop rivet gun cylinder (the cylinder opening is at the bottom)
1. Dissemble the cylinder base opening with a wrench.
2. Clamp the hexagon nut and drag the cylinder chassis carefully.
3. Fill hydraulic oil in the hole.
4. Install the cylinder chassis and base.
Attention: you don’t need to fill hydraulic oil in a new air rivet gun.
