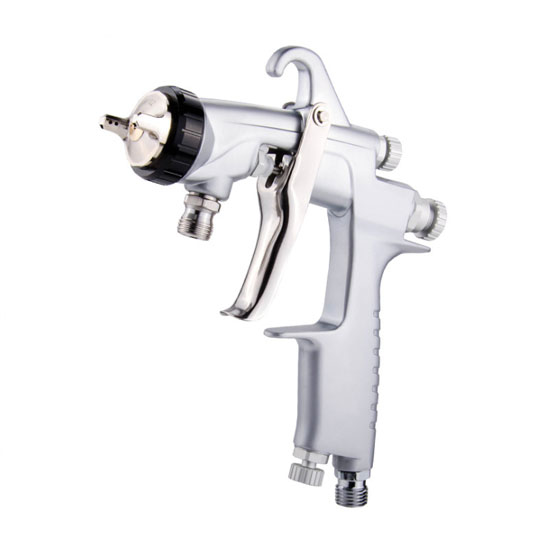

Name: Air Spray Gun, 350/600ml, 0.8/1.0/1.3/1.8mm
Brand: Tool
SKU: 1221
Availability: InStock

Air Spray Gun, 350/600ml, 0.8/1.0/1.3/1.8mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

30 People watching this product now!

We offer 0.8/1.0/1.3/1.5/1.8 mm nozzle gravity feed air paint spray gun and siphon air paint sprayer for your choices. 0.8mm and 1.0mm nozzle is used for painting leather goods, toys, small area repair, light industry. 1.3mm and 1.5mm nozzle are used for painting, car repair, carpentry, furniture, and other metal or plastic products. 1.8mm nozzle is used for woodworking, painting furniture and metal products.

Specification

Model	T-ASG-350G	T-ASG-600S

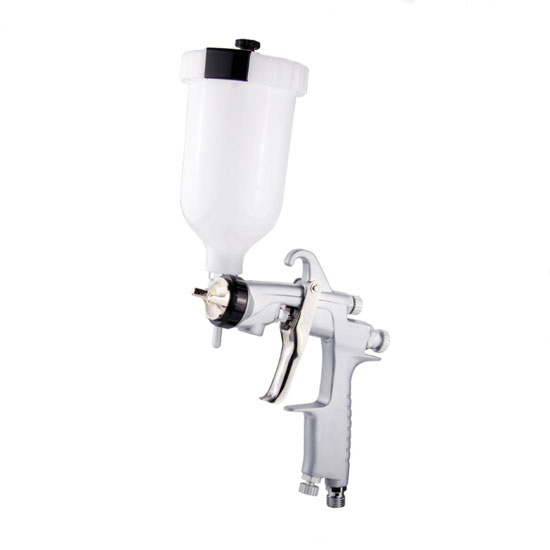

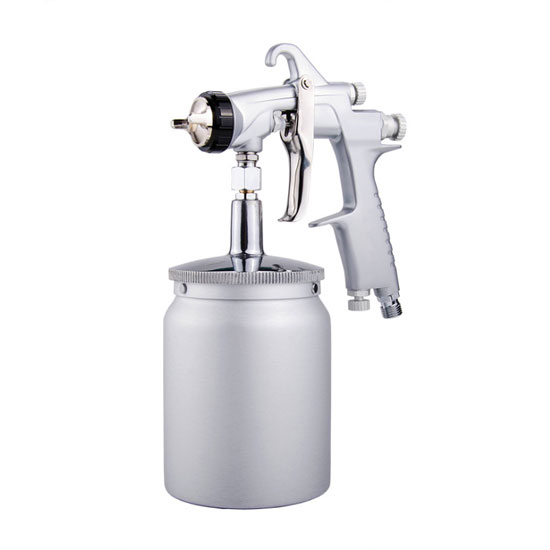

Type	Gravity Feed Air Spray Gun	Siphon Feed Air Spray Gun
Nozzle Diameter Selection	0.8/1.0/1.3/1.5/1.8 mm	0.8/1.0/1.3/1.5/1.8 mm
Spraying Scope	120 – 190 mm	120 – 190 mm
Spraying Cup Capacity	350ml (11.8 Oz)	600ml (20 Oz)
Spraying Cup Material	Plastic	Stainless Steel
Working Pressure	0.68 MPa	0.68 MPa
Air Inlet Size	1/4 inch (6.35mm)	1/4 inch (6.35mm)
Hose Size	6.5mm	6.5mm
Air Compressor Power	1.5kW	1.5kW
Power Source	Air Powered	Air Powered
Weight	0.48kg	0.65kg

Structures of air paint sprayer

Paint spraying cup: The paint spraying cup made of high quality PP plastic that is corrosion resistant and sealed. It effectively avoids paint leakage.
Adjustable spraying cap: The spraying cap can be adjusted 360 degrees to control the direction of the spraying scope.
Starting switch: Press the starting trigger, the paint will spray out.
Spraying scope valve: The looser the knob, the smaller the spraying scope, and the tighter the knob, the smaller the spraying width.
Spraying fluid valve: The looser the knob, the more paint, the tighter the knob, the less paint.
Air pressure valve:You can adjust the air pressure valve to get the good atomization effect and paint saving.

Details

Tips: Different Between HVLP and LVLP of Air Spray Gun

HVLP – High Volume, Low Pressure
HVLP air spray gun allows larger amounts of coating to be delivered under the low pressure. These systems feed the air produced by the turbine through hoses to the spray gun. The air sprayer absorbs a large amount of air and compresses it to 4-10 psi (pounds per square inch) at 46-62 cubic feet per minute (CFT/min), resulting in a uniform flow of coating with little over spraying. The spraying mode of the HVLP air paint sprayer can be set by adjusting the air cap to provide the amount and fineness of spraying.
LVLP – Low Volume, Low Pressure
The LVLP system is a turbine driven (first stage), but it operates at 1psi of pressure from the spray gun at 41 cubic feet per hour. Fine spray dries quickly and with almost no over spray. LVLP is designed for use with tanning solutions and exfoliation. The LVLP air spray gun, like the LVLP system, provides you with a spraying mode selection, cooling grip, paint fluid adjustment, and trigger.
