Name: Automotive Clamp Meter, AC DC Voltage 600V
Brand: Tool
SKU: 1349
Availability: InStock

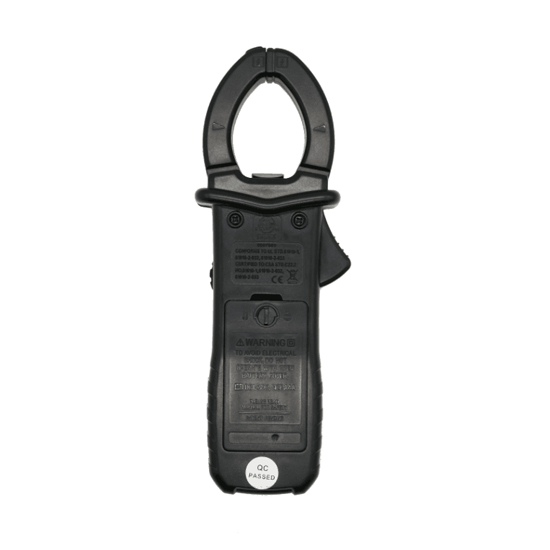

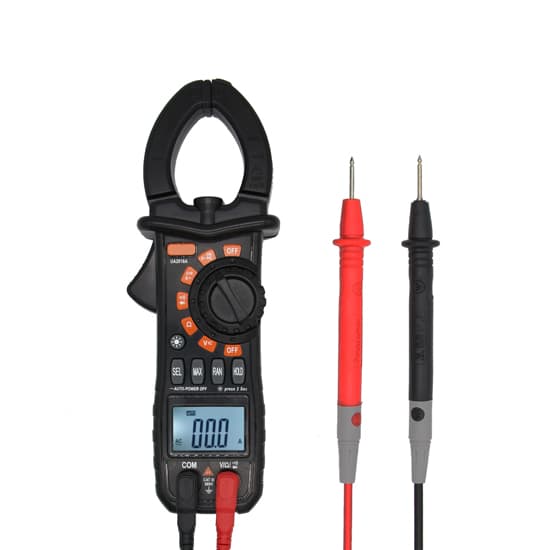

Automotive Clamp Meter, AC DC Voltage 600V

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

44 People watching this product now!

The automotive meter is equipped with a 4-digit LCD display that provides clear readings, with a maximum display value of 1999. Powered by 3 AAA batteries, it offers robust performance with a maximum jaw opening size of 36mm, suitable for various applications.

Specification

Basics	Model	T-CM-UA2018A
	Weight	530g
	Size (LWH)	2107835mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	36mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	AC current	600A	±(3.0%+10 digits)
	DC voltage	600V	±(0.8%+2 digits)
	AC voltage	600V	±(1.0%+10 digits)
	Resistance	20MΩ	±(1.2%+2 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Manual range selection
	Backlight	Backlight for LCD display
	Inspection light	Inspection light for clamp operation
	LED torch	A LED torch for night lighting

Features

LED Flashlight: Activate the LED light by selecting ‘mA/A’ mode and holding the ‘HOLD’ button for two seconds, ideal for working in low-light conditions.
Backlit Display: Press ‘HOLD’ for two seconds to turn on the backlight, ensuring clear readings in dim environments.
Continuity Buzzer: Quick continuity testing with an audible “bee” sound in less than 0.25 seconds by pressing the ‘FUNC’ button.
Versatile Measurement Capabilities: This clamp meter is equipped to measure DC voltage, AC voltage, AC current, and resistance, making it a highly adaptable tool for a wide range of electrical testing applications.
Auto-Ranging Functionality: The meter automatically selects the optimal measurement range, ensuring accurate readings without the need for manual adjustments, simplifying the testing process.
Non-Contact Voltage (NCV) Detection: Safely detects the presence of voltage without requiring direct contact, minimizing the risk of electrical shock and enhancing user safety.
Comprehensive Overload Protection: The meter is designed with full-scale overload protection, safeguarding both the device and the user during high-load measurements.
Robust and Ergonomic Design: Featuring a durable, wear-resistant silicone outer shell, the meter offers excellent grip and protection against drops, ensuring long-lasting performance and comfort.
Convenient Data Hold Feature: The data hold function allows users to freeze the current measurement on the display, making it easier to record and analyze readings.

Structure

Tips: Why is the automotive meter giving inaccurate readings?
Inaccurate readings can occur if the meter is not set to the correct measurement range or if the test leads are faulty. Double-check that the meter is in the appropriate range for the measurement you are taking. If the auto-ranging function is on and the issue persists, consider switching to manual range selection. Additionally, inspect the test leads for any signs of wear or damage; faulty leads can cause incorrect readings. If the leads are damaged, replace them with a new set. If the readings are still inaccurate, the meter may need recalibration or professional servicing.
