Name: Concrete Portable Moisture Detector
Brand: Tool
SKU: 1503
Availability: InStock

Concrete Portable Moisture Detector

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

50 People watching this product now!

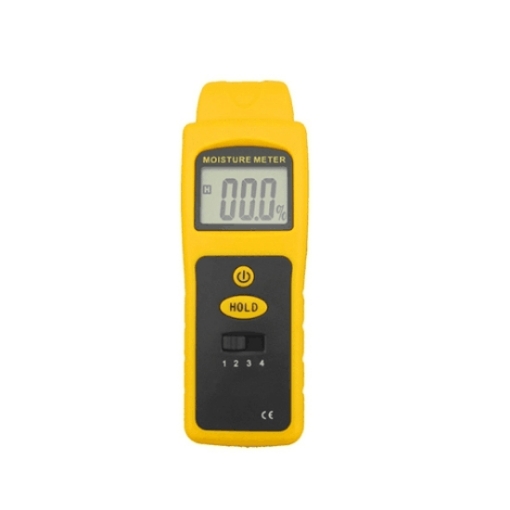

This compact, lightweight moisture detector has a clear 3-digit LCD display and measures moisture from 1% to 40% with minimal error. It works in temperatures from -10℃ to 60℃ and up to 70% humidity. Four settings cover materials like marble, granite, cement, concrete, brick, and mortar.

Specification

Model	T-MM-7822S
Size	Main unit: 165x58x33mm
Display	3-digit 17mm oversized LCD
Resolution	1%
Moisture Measurement Range	1% – 40%
Instrumental Error	± (1%Rh+1)
Weight	Main unit: 90g (excluding battery)
Operating Environment	Temperature: -10℃ to 60℃; Humidity: 0-70% RH
Gear	Gear 1: Marble, Granite Gear 2: Cement, Concrete, Plaster Gear 3: Brick, Clay Refractory Brick Gear 4: Cement Mortar

Feature

Microcomputer Technology for Precision: Incorporates microcomputer technology to enhance measurement accuracy and reliability.
Automatic Temperature Compensation: Automatically adjusts for temperature changes, reducing the effect of temperature drift on measurements.
Clear LCD Display: Features a large, high-definition LCD screen that provides clear, parallax-free readings.
Low Voltage Alert: Built-in low voltage prompt ensures the moisture detector operates efficiently by alerting when battery levels are low.
Durable ABS Construction: Made with premium electronic components and a sturdy, lightweight ABS plastic shell for durability and a modern appearance.
Sensitive and Versatile Measurement: The phenolic resin sensor offers quick response and a wide measurement range, making it ideal for various material moisture tests.
Easy Operation: Select the appropriate setting, press the sensor on the surface, and get accurate moisture content readings with ease.
Zeroing Potentiometer for Accuracy: Allows environmental synchronization through the adjustable zeroing potentiometer for precise moisture readings.

Detail

Application

Tips: How does the moisture detector work?

The concrete portable moisture detector uses an electronic sensor to measure the moisture content in various materials. It operates by detecting electrical resistance, which changes with moisture levels. When you press the sensor onto the surface of a material like concrete, marble, or brick, the device reads the moisture level based on the material’s resistance. With its advanced microcomputer technology, it converts this resistance into a digital reading on the LCD display, providing an accurate measurement.
