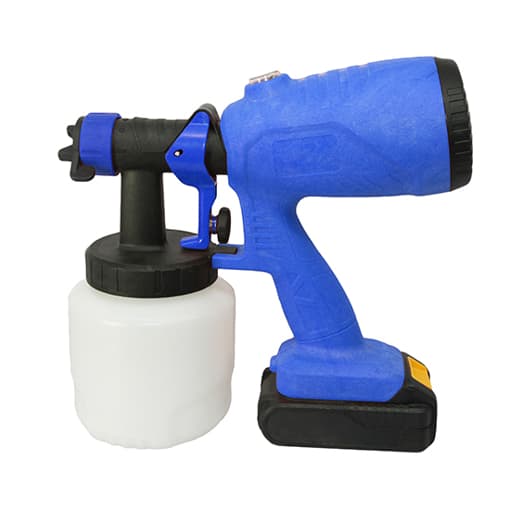

Name: Cordless Electric Paint Sprayer, 20V, 8 GPH
Brand: Tool
SKU: 74
Availability: InStock

Cordless Electric Paint Sprayer, 20V, 8 GPH

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

37 People watching this product now!

Electric paint sprayer is a cordless tool powered by 20V lithium battery. It is a HVLP electric paint spray gun, applicable paintings are exterior paint, interior paint, top paint, nitro paint, polyurethane paint, polyester paint, metallic paint, varnish and so on.

Specification

Model	T-EP101A
Rated Voltage	20V Lithium
No-Load Speed	30,000/min
Capacity	800mL
Nozzle Diameter	1.8mm
Air Pressure	0.1kg/cm³
Air Consumption	1.4m²/min
Water Consumption	8 GPH (500mL/min)
Maximum Viscosity	50 DIN/sec
Weight	2kg

Features

Cordless electric paint sprayer can be used in paint spraying for exterior wall, wood art, furniture, metal, staircase, car and interior decoration, leather dyeing, formaldehyde removal, etc.
Replaceable nozzle, controllable flow, adjustable spraying shape.

Cordless Electric Paint Sprayer Structure Diagram

Adjustable Spraying Shape Diagram

Round dot shape: suitable for corner position with small area.
Horizontal shape: suitable for vertical position with large area.
Vertical shape: suitable for horizontal position with large area.

Battery Removal Method

Press the battery button.
Pull out the battery pack backwards.

As shown in diagram.

Tips: Precautions for use of cordless electric paint sprayer.

When spray gun is standing still, electric paint sprayer should not be placed upside down to prevent the paint from flowing back into motor, which will damage the motor.
When spray gun is spraying upwards, do not release the trigger, otherwise the paint will flow back into motor and cause damage to the machine.
Electric paint sprayer cannot spray vertically upwards. When spraying the top, can tilt 45° for spraying operation.
