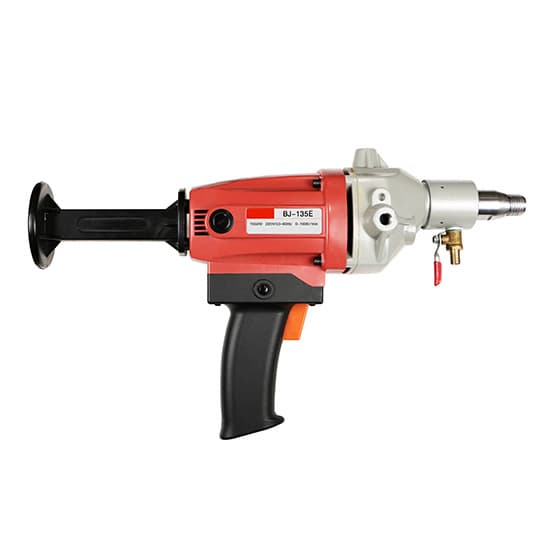

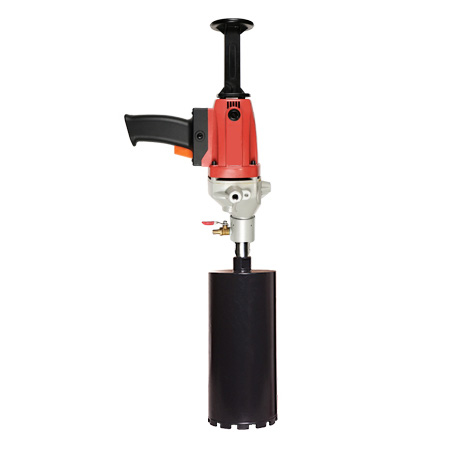

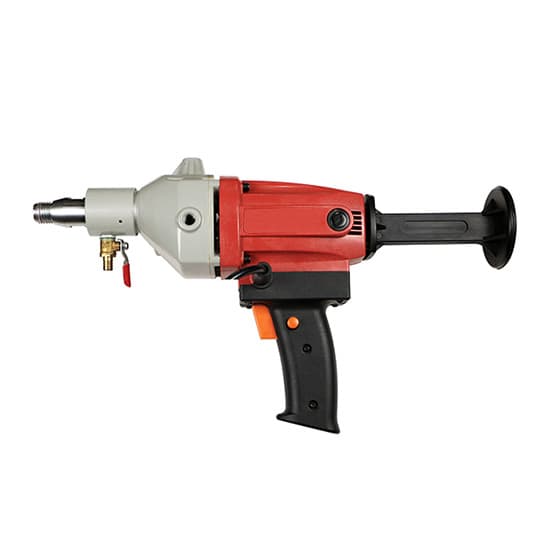

Diamond Core Drill Machine, 90mm, 1400W
Original price was: $225.19.$67.99Current price is: $67.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
15
People watching this product now!
Description
Concrete hole drill with high quality and best price is a popular construction tool used in construction quality inspection as well as building construction and installation, it features 95mm max drilling diameter, 1400 watt power and 1800 r/min step-less speed, also offers portable / vertical use with high accuracy and efficiency and light weight to operate.
Description
| Model Number | T-95E |
| Power Source | electrical power |
| Drill Type | wet / dry dual use |
| Drilling Range | 15-95mm (3/5 – 3-3/4 inch) |
| Max. Drilling Diameter | 95mm (3-3/4 inch) |
| Rated Voltage | 110V / 220V / 240V |
| Rated Frequency | 50-60Hz |
| Rated Input Power | 1400W |
| No-load Speed | 0-1800 r/min |
| Dimensions | 480 * 130 * 350mm |
| Characteristics | portable / vertical |
| Net Weight / Gross Weight | 4.5kg / 6kg |
| Certification | CE |
| Package | diamond core drill * 1 |
| Package Size | 480 * 130 * 350mm |
| Package Type | large carton box |
| Application | reinforced concrete, rocks, ceramics, glass and fire-proof materials |
Features
- Advantages: The wet / dry dual use core drill uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability. Portable use is very convenient during working.
- Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials, is widely used in construction quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.
Details
Power Plug Selection
(Note: Power plug can be customized based on your local machine standards.)
Tips: What is diamond core drill machine?
- Diamond core drill machine is a more accurate, efficient and faster method of drilling holes on reinforced concrete, rocks, masonry, ceramics, glass and other materials and is widely used in quality inspection, installation of electricity and plumbing as well as construction of large buildings, such as airport runway, railway, bridge and tunnel.
- The diamond drilling machine provides a special drilling technique that doesn’t cause any damage or vibration to the surrounding structure and is completely safe and noiseless, making it an environmentally friendly alternative for construction contractors.
- This core drilling methods eliminate the chance of fracture and reduce spalling. Using the right diamond coring bit ensures that user will get sharp, clean and accurate openings without any patches or any other repairs. Instead, the worker can immediately start the next installation to save much labor and time.
