Name: Digital Outside Micrometer, 0-25mm, 0.003mm
Brand: Tool
SKU: 1492
Availability: InStock

Digital Outside Micrometer, 0-25mm, 0.003mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

24 People watching this product now!

Good price digital outside micrometer with optional base, 0.5kg net weight, two sets of 3V button batteries in a plastic box. 0.003mm measurement accuracy and 0-25mm measurement range. After the electronic micrometer measures the length of the object, the LCD display will show the measurement result.

Specification

Model	T-DOM
Range	0～25mm
Resolution	0.001mm
Accuracy	0.003mm
Measuring Force	5～10N
Power Consumption	≤20μA
Operating Temperature	0～40℃
Storage Temperature	-20～60℃
Material	1. Hard alloy steel 2. Stainless steel
Weight	0.3kg

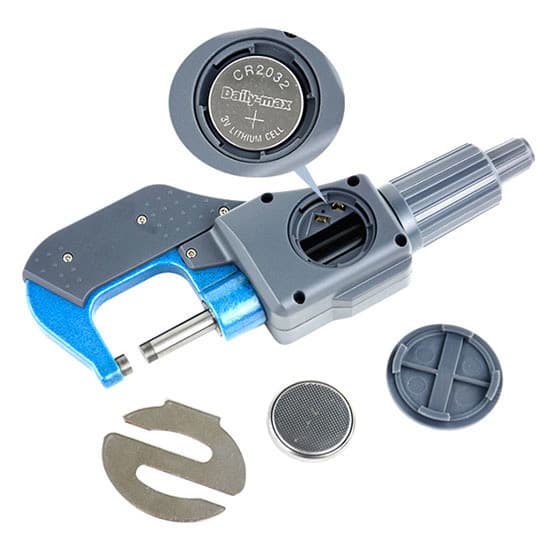

Battery Type	CR2032 3V button battery (included)

Features

1. Digital micrometer has an LCD display, so you can see the measurement results intuitively.

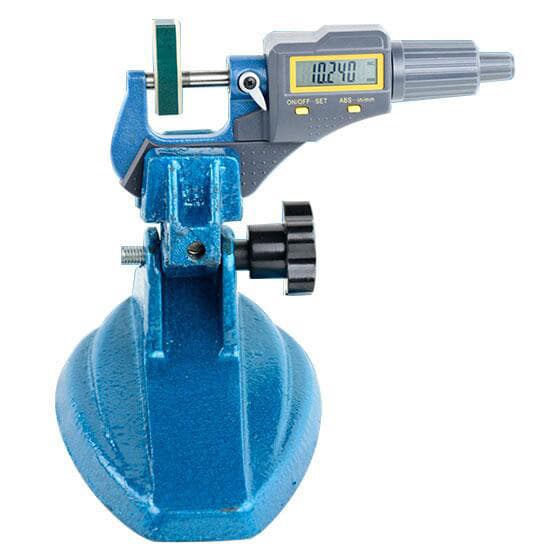

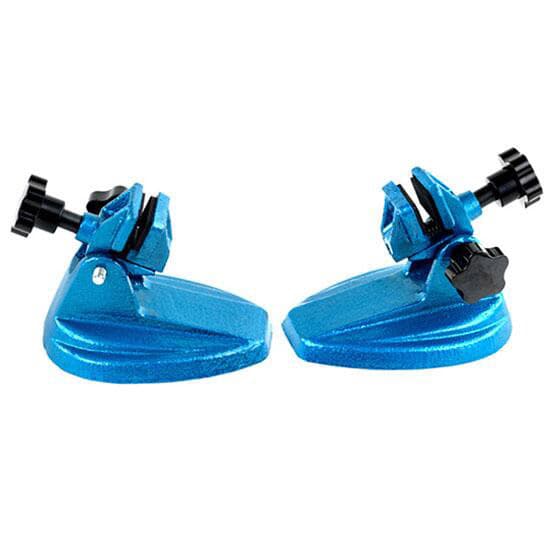

2. Electronic micrometer can be used with the base and can be operated with one hand, which can speed up the measurement.
3. It adopts electronic measurement with high accuracy and more accurate measurement results.
4. Measurement surface of the micrometer carbide tip can improve the grip and avoid the influence of the harsh measurement environment on the reading.

Tips: How to read the numerical displayed on the micrometer?

1. Read the fixed scale first.
2. Read the half-scale again. If the half-scale line is exposed, record it as 0.5mm; if the half-scale line is not exposed, record it as 0.0mm.
3. Read the movable scale again (pay attention to the estimate). Recorded as n×0.01mm.
4. The final reading result is fixed scale + half scale + movable scale + estimated reading.
