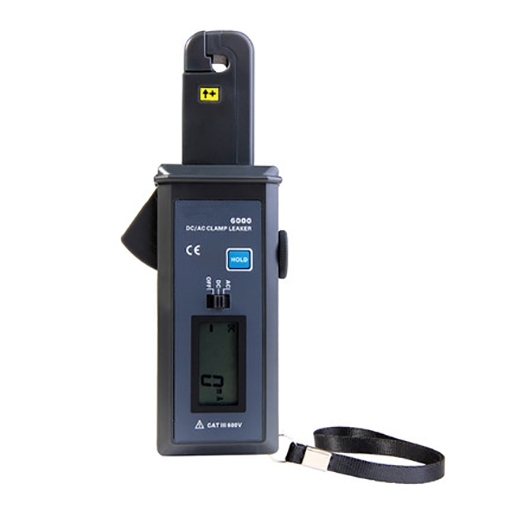

The earth leakage clamp meter ac/dc can accurately test leakage current with a measurement range of 0mA to 60A. The earth leakage clamp meter helps users detect, record, log and compare leakage current readings over time to prevent unexpected downtime.

Details

AC/DC leakage current clamp meter, measuring range 0mA-60A.

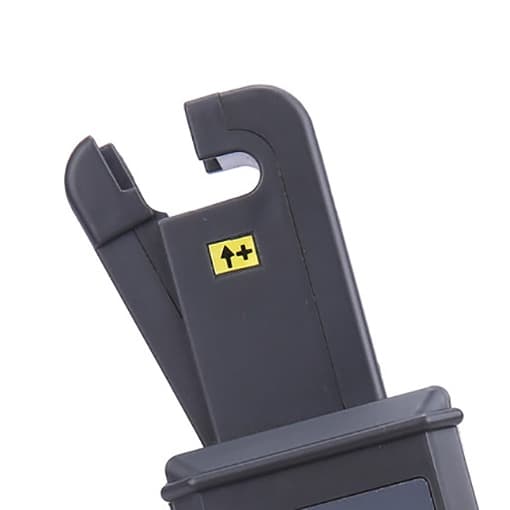

The iron core adopts high-performance PoMo alloy and Hall induction technology, which is suitable for power metering systems, high-speed rail systems, automotive circuit maintenance, etc.
The instrument has a small volume, high accuracy, and stable performance.It has data retention and storage functions.
The data upload function can upload stored data to a computer for easy reading, saving, and printing.

Specifications

Model	T-ETCR6000
Current Range	AC/DC 0mA~60.0A
Resolution	AC/DC 1mA
Accuracy	±2%rdg±5dgt
CT Size	Φ7mm
Meter Dimensions	168mm×65mm×34mm
Weight	180g
Power Supply	Alkaline battery 6LR61 9V
Working Current	10mA
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Sampling Rate	15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Communication Interface	Storage data can be uploaded to the computer saved and print
Data Storage	99 groups, flash display “FULL” symbol indicates storage full
Data Hold	Data hold function: “DH” symbol display
Overflow Display	Exceed measure range overflow function: “OL A” symbol display
Polarity Indication	In DC current test auto-identified and display the “-” symbol
Auto Shut Down	5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption.
Battery Voltage	Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery
Line Voltage	Below 600V circuit test
Shift	Automatically

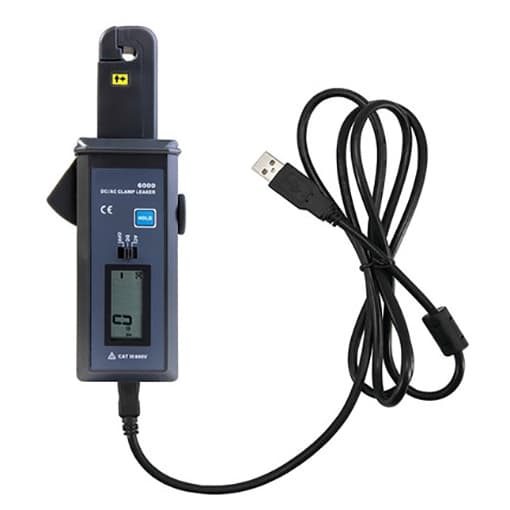

Accessories	Meter:1PCS; Communication cable:1PCS; Cloth bag:1PCS

Applications

The earth leakage clamp meter ac/dc is available with a measuring range of 0.00mA-60A. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.

Tips: How to use a earth leakage clamp meter?
When using a earth leakage clamp meter dc/ac to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car’s battery is in a charging state or a discharging state.
