Name: Earth Leakage Clamp Tester, 0.00mA-300.00A
Brand: Tool
SKU: 1354
Availability: InStock

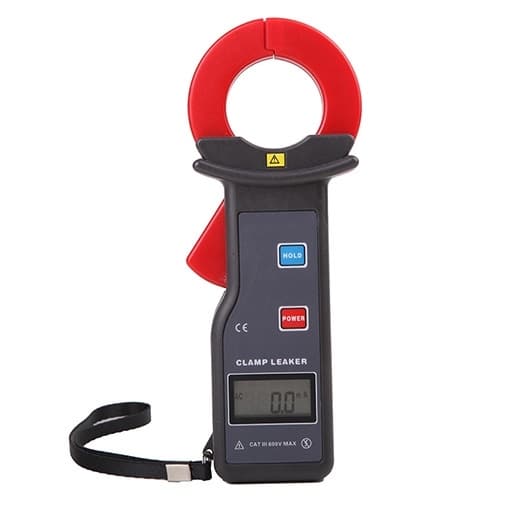

Earth Leakage Clamp Tester, 0.00mA-300.00A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

54 People watching this product now!

The meter equipped with USB interface, communication cable and monitoring software. It can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the alarm value setting and the alarm indication function, has the historical data reading, saves, prints and other functions. The meter also with peak hold, data hold and data storage and other functions, convenient to use, which is an essential tool for electrical safety inspection.

Specifications

Model	T-ETCR6500
Current Range	0.00mA-300A
Resolution	0.1mA
Accuracy	±1.5%rdg±5dgt (23℃ ± 3℃ , below 70%RH)

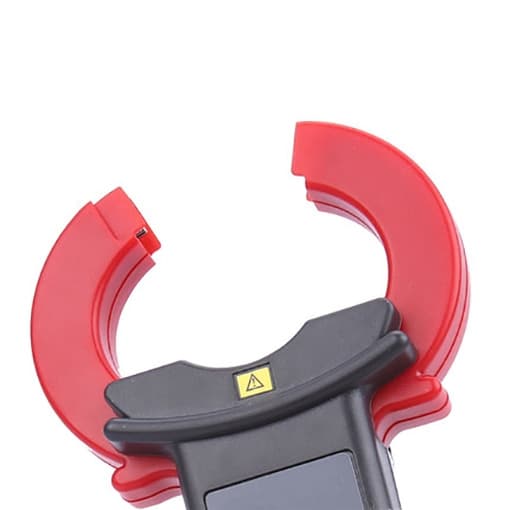

CT Size	35*40mm
Meter Dimensions	184mm×70mm×38mm
Weight	250g

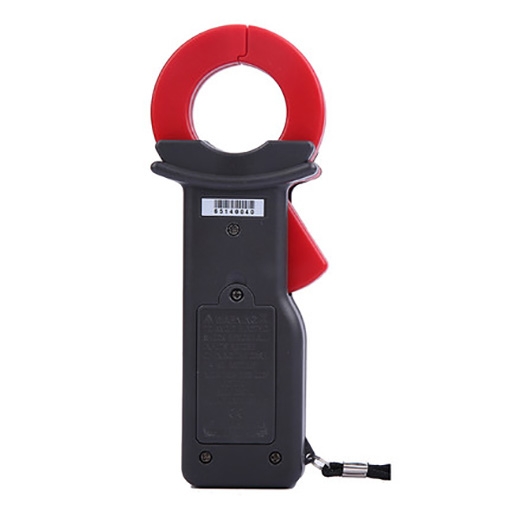

Power Supply	Alkaline battery 6LR61 9V
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Sampling Rate	2 times/second
Communication Interface	Storage data can be uploaded to the computer, and software monitoring.
Data Storage	99 groups, flash display “FULL” symbol indicates storage full
Peak Hold	Peak value capture and hold function, long press HOLD key display peak value.
Data Hold	Data hold function: “DH” symbol display
Overflow Display	Exceed measure range overflow function: “OL A” symbol display
Polarity Indication	In DC current test auto-identified and display the “-” symbol
Auto Shut Down	5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption.
Battery Voltage	Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery.
Working Current	5mA
Line Voltage	Below AC 600V circuit test
Shift	Automatically

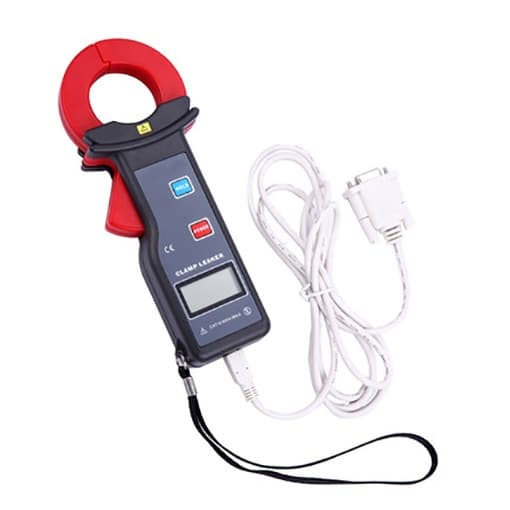

Accessories	Meter: 1PCS; Communication cable: 1PCS; Cloth bag: 1PCS

Applications

Earth Leakage Clamp Tester is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises, automobile circuit maintenance and other fields. Its sensing iron core is made of permalloy, adopts multi-layer shielding technology, and has strong anti-interference ability, which ensures the high precision, high stability and high reliability in the measurement of all year round without interruption.

How to use an earth leakage clamp meter to measure voltage?

An Earth Leakage Clamp Meter is designed primarily to measure leakage current, not voltage. It’s typically used to detect leakage currents that might flow to the ground, which is important for safety checks, especially in electrical installations. However, you cannot directly measure voltage with a clamp meter like you can with a voltmeter or multimeter.

If you’re looking to measure voltage, you’ll need to use a different tool, such as a voltmeter or a multimeter. But if you have a clamp meter with voltage measuring capabilities (some models do), you would need to follow the manufacturer’s instructions for that specific model, as most clamp meters are meant for current measurements.

If you’re specifically looking to measure leakage current with an earth leakage clamp meter, here’s how:

Set the clamp meter to the leakage current measurement setting, usually labeled with an “mA” or “A” symbol for current.
Clamp the jaws around one of the conductors (live, neutral, or ground) of the electrical circuit.
Read the display on the meter to see if there’s any leakage current. The earth leakage current should show up if there’s any stray current flowing to the ground.

Remember, earth leakage clamp meters are mostly used for safety checks to ensure that current is not leaking to the ground in an unsafe manner. For voltage readings, you’ll need a proper voltage measurement tool.
