Buy soil resistivity tester online tool.com. It is also a ground resistance tester that can measure ground resistance, soil resistivity, and ground voltage in the field. tool soil resistivity tester has a large range of 0~30000 ohms, read, query, save, report, print and other historical data functions, which are widely used in electric power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment.
Details

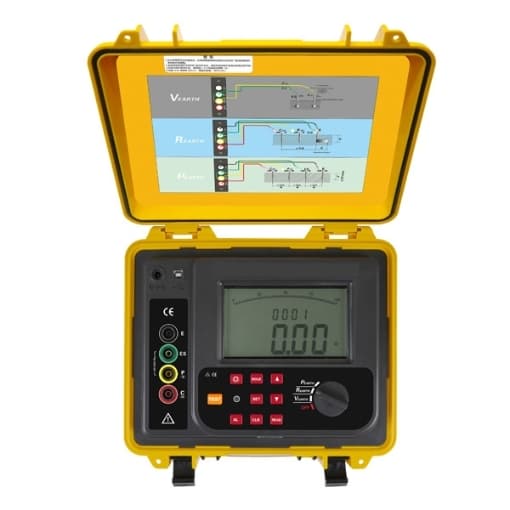

The soil resistance tester has a measuring range of 0~30kΩ and a waterproof housing.
- The Digital Ground Resistance Soil Resistivity Tester has an accurate 3/4 wire and a simple 2-wire method to measure ground resistance, soil resistivity, and ground voltage.
- The tool resistance tester adopts imported FFT (Fast Fourier Transform) technology and AFC (Automatic Frequency Control) technology, which has unique anti-interference ability and environmental adaptability, and high consistency of repeated tests.
- The packaging comes with a waterproof protective box, which is waterproof, shockproof, drop-proof, durable, and has a large capacity rechargeable lithium battery pack, which is especially suitable for use in outdoor construction sites.
- The soil resistivity tester is equipped with a large LCD display of the main unit with a white backlight and a clearly visible bar graph indication.
Alarm function, overload protection function, automatic shutdown and data upload function.
Applications
tool earth resistance tester for soil is available with a measuring range of 0.00Ω~30kΩ. The soil resistivity test with a waterproof box is anti-collision, anti-fall, and waterproof (protection grade IP65), especially suitable for use in outdoor construction sites, widely used to measure the grounding resistance of electric power, telecommunications, meteorology, construction, lightning protection and industrial electrical equipment, etc.
Specifications
| Model | T-ERT-3100C | ||
| Earth Resistance(R) | Range: 0.00Ω~30.00Ω Resolution: 0.01Ω Accuracy: ±2%rdg±3dgt | ||
| Range: 30.0Ω~300.0Ω Resolution: 0.1Ω Accuracy: ±2%rdg±3dgt | |||
| Range : 300Ω~3000Ω Resolution: 1Ω Accuracy: ±2%rdg±3dgt | |||
| Range: 3.00kΩ~30.00kΩ Resolution: 10Ω Accuracy: ±4%rdg±3dgt | |||
| Earth Voltage | Range: AC 0.0~600V Resolution: 0.1V Accuracy: ±2%rdg±3dgt | ||
| Soil Resistivity(ρ) | Range: 0.00Ωm~99.99Ωm Resolution: 0.01Ωm | Accuracy: According to the precision of R | |
| Range: 100.0Ωm~999.9Ωm Resolution: 0.1Ωm | (ρ=2πaR, a: 1 m-100m, π=3.14) | ||
| Range: 1000Ωm~9999Ωm Resolution: 1Ωm | |||
| Range: 10.00kΩm~99.99kΩm Resolution: 10Ωm | |||
| Range: 100.0kΩm~999.9kΩm Resolution: 100Ωm | |||
| Range: 1000kΩm~9000kΩm Resolution: 1kΩm | |||
| Power Supply | DC 7.4V 2600mAh rechargeable lithium battery, full charge about DC 8.4V | ||
| Measurement Method | Earth Resistance: rated current change-pole method, measure current 20mA Max Soil Resistivity: Wenner 4-pole measurement Earth Voltage: average rectification(between P(S)-ES) | ||
| Test Frequency | 128Hz/111Hz/105Hz/94Hz (AFC) | ||
| Test Voltage Wave | Sine wave | ||
| Short-circuit Test Current | AC 20mA max | Open-circuit Test Current | AC 40V max |
| Data Storage | 300 groups | Data Hold | Data hold function: “HOLD” symbol display |
| Data Access | Data access function: “READ” symbol display | Overflow Display | Exceeding measure range overflow function: “OL” symbol display |
| LCD Dimension | LCD Frame Dimension: 128mm×75mm； LCD Display Dimension: 124mm×67mm | ||
| Tester Dimension | 280mm(L)×260mm(W)×160mm(H) | ||
| Weight | Total Weight: 5700g(with package) | ||
| Testing Wires | Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6pcs wires) | ||
| Auxiliary Ground Rod | 4PCS: Φ10mm×250mmp10mmx250mm | ||
| USB Interface | With USB interface, software monitoring, stored data can be uploaded to a computer, saved and printed, data transmission cable length: 1.5m | ||
| Alarm Function | Measure value exceeds alarm setting value, will “Toot-toot-toot” alarm indication | ||
| Auto Shutdown | 15 minutes after power on, will automatically shut down without any operation. | ||
| Overload Protection | Measure earth resistance: between each interfaces of C(H)-E,P(S)-ES, AC 280V/3 seconds | ||
| Interference Test | Automatic recognition of interference signal, interference voltage higher than 5V will display the “NOISE” symbol | ||
| Auxiliary Grounding Test | Auxiliary earth resistance test function: 0.00kΩ~30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ) | ||
| Protection Level | IP65(close the case) | ||
| Battery Voltage | When the battery voltage decreases to around DC 7.2V+0.1V, will display battery voltage low symbol, and remind to replace the battery | ||
| Working Current | Standby: around 20mA (Backlight close); Power on with backlight: 45mA (backlight close 25mA); Measurement: 100mA (Backlight close) | ||
| Accessories | Tester: 1PC; Ground Rod: 4PCS; Test wires: 4PCS; Simple test wire: 2PCS; USB data transmission cable: 1PCS; Tester bag: 1PCS; Special charger: 1PCS | ||
Package List
Tip: What is earth resistance?
Earth resistance is the resistance encountered when the current flows from the grounding device to the ground and then flows to another grounding body or spreads to a distant place through the ground. It includes the resistance of the grounding wire and the grounding body itself, the contact resistance between the grounding body and the resistance of the earth, and the resistance of the earth between the two grounding bodies or the earth resistance from the grounding body to infinity. sisco digital earth resistance tester is specially designed for measuring ground resistance, which can prevent ground faults.
