15 People watching this product now!

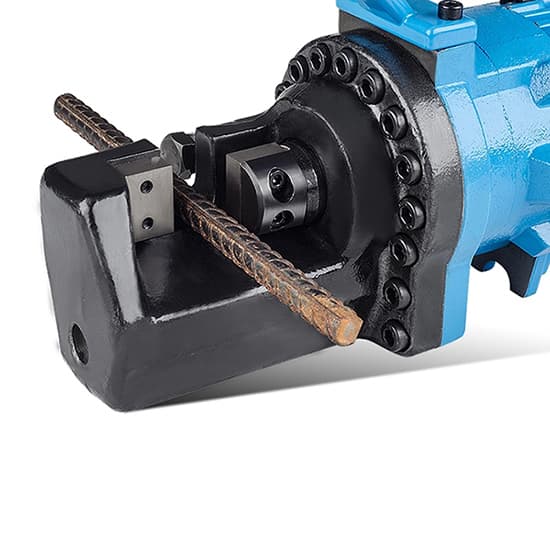

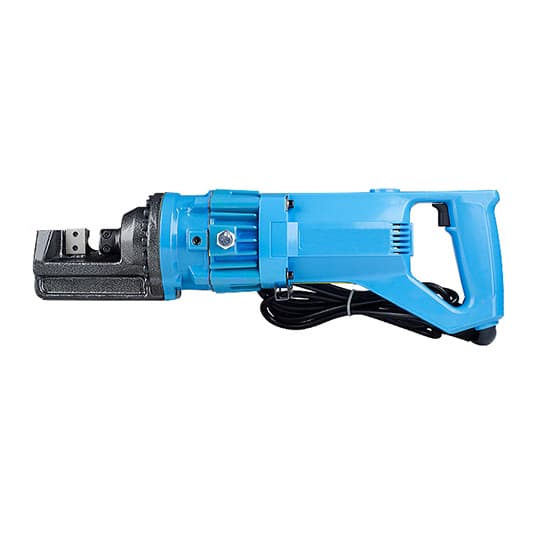

The electric rebar cutter is a hand-held portable cutting machine, driven by hydraulic system and high power motor. Applicable materials are steel bar, round bar, iron rod, carbon steel.

Specification

Model	T-ERCT-RC16
Cutting Range	Ф4-Ф16mm (1/6.35″~5/8″)
Voltage	110V/60Hz, 220V/50Hz
Output Power	1.05kW
Machine Length	460mm
Weight	12.5kg

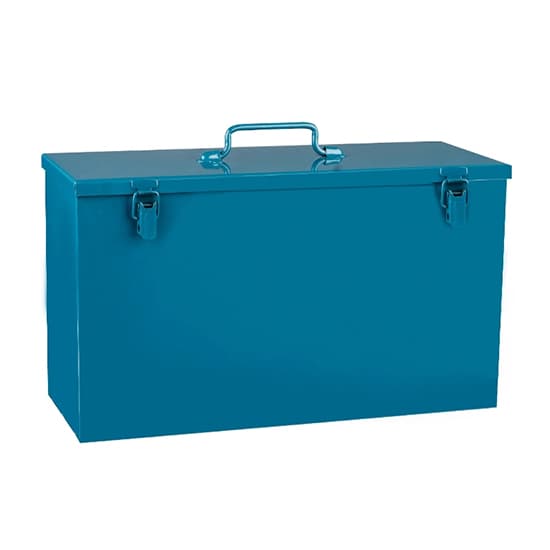

Package	steel case

Features

The electric rebar cutter has a high-quality steel metal cutter head, hardened at high temperature, durable.
Ring-type nut distribution design makes the cutter head firmer, better sealing, stable and safe operation.

Note: The following materials are inapplicable for electric rebar cutter

anchor chain, high hardness round steel, alloy with unknown composition, flat iron, stainless steel, various U-shaped locks

Electric Rebar Cutter Structure Diagram

Electric Rebar Cutter Standard Configuration

① electric rebar cutter

② hydraulic oil

③ open end wrench

④spare screw for blade

⑤ Allen wrench

Tips: Electric rebar cutter operation method.

According to diameter of the steel bar to be cut, adjust the adjustment stopper of electric rebar cutter, make steel bar forms a right angle to the cutting block.
Clamp the steel bar and activate switch.
As the piston advances, steel bar will be cut. Activate switch to move piston to the top end. If piston does not reach the top, it will not return.
After piston of the electric rebar cutter reaches the top end, turn off switch and return the piston.
If electric rebar cutter does not move even piston completely returns to its original position, it is because the valve is open and the next hydraulic pressure has not arrived.
When cutting, if rebar cutter piston does not return, please push it back with steel bars. At this time, please pay special attention not to damage the piston. In addition, when piston does not completely return to its original position, even if switch is turned on, the vitality cannot come out. Therefore, after piston is completely returned to its original position, then perform the next cutting.
