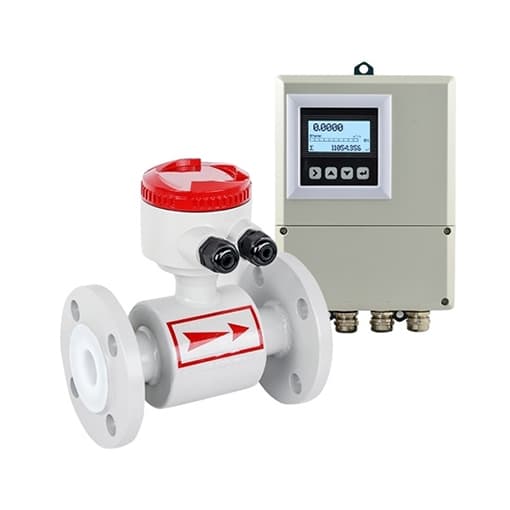

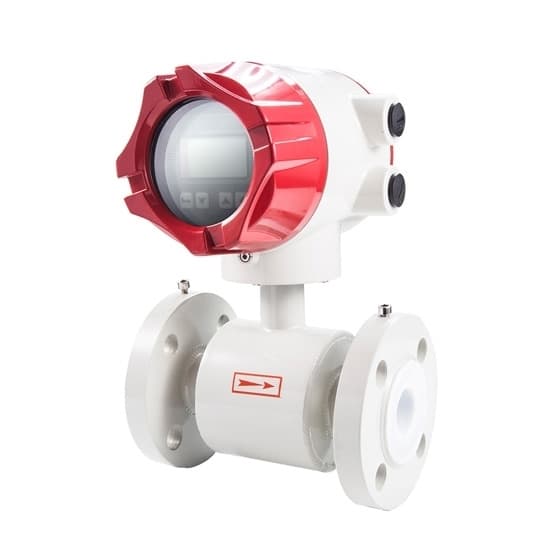

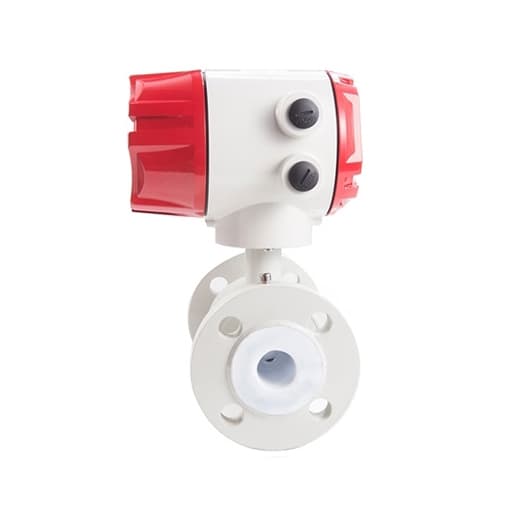

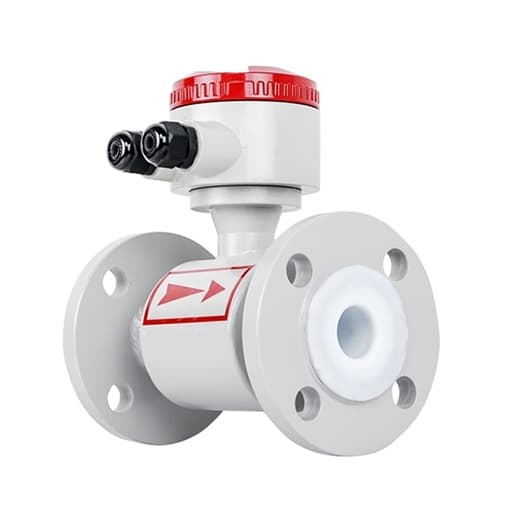

Tool shop offers high precision electromagnetic flow meters for accurate measurement of a wide range of conductive liquids in pipe diameters from DN15 to DN200 to meet different industrial requirements. The magnetic flow meter has a rated pressure of 1.6MPa, supports temperatures up to 120℃, and supports integral and split configurations, which can be flexibly selected according to different working conditions, ensuring excellent performance at high temperatures and high pressures.

Specification

Model		T-LDG
Medium		Conductivity fluid (≥5uS/cm)
Nominal Diameter *		DN15~DN200
Nominal Pressure		1.6MPa
Velocity Range		0~10m/s
Accuracy		±0.5%R
Configuration		Integral type or split type Note: The main difference between integral and split flowmeters is temperature and pressure compensation. The split type is to install the flowmeter and temperature/pressure transmitter separately, and the integral type is to install the temperature/pressure transmitter integratedly.
Highest Medium Temperature	Integral type	+80℃
	Split type	+80℃ (CR) or +120℃ (F4)
Turn-down Ratio	Integral type	20:1
	Split type	10:1
Ambient Temperature	Sensor	-25℃~+180℃
	Convertor	-10℃~+60℃
Liner Materials *		Chloroprene rubber (CR) or Polytetrafluoroethylene (F4) (Customized materials: Polyurethane rubber PU, F46)
Electrode Material *		Stainless steel 316L (Customized electrode: Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum)
Form of Electrode		Interpolating
Number of Electrode		Standard configuration 3-4 electrodes (two measuring electrodes plus a grounding electrode)
Output Signal		4-20mA
Cable Entry Size		M20 × 1.5 (Nylon waterproof connector)
Supply Voltage*		110V/220V AC, 50Hz/60Hz; 24V DC ±10%
Power Dissipation		≤15VA
Communication		RS-485, support standard Modbus-RTU protocol
Flange Standard		Conform to the international GB9119
Flange Material		Carbon steel
Grounding Ring Material		Stainless steel
Housing Material		Carbon steel
Protection Level		IP65
Cable Length (Remote Type)		10m connecting line (Standard)

Note:
*Please note that all the options may not listed in the selecting area, including the nominal diameter, liner materials, electrode materials and so on. If your have any requirements, please contact us.
*For more information, please check the Electromagnetic Flow Meter User Manual.

Electromagnetic Flow Meter Features

Electromagnetic flow meter has strong anti-interference power and is virtually immune to external interference.
Measurement is not affected by changes in fluid density, viscosity, temperature, pressure and conductivity.
No flow-retarding parts in the measuring pipe, no pressure loss, low requirement of straight pipe section.
Magnetic flow meter has no moving parts in the pipeline, no flow-restricting parts, and almost no negative pressure loss in the measurement.
With self-test and self-diagnosis function.
The range can be modified online according to the user’s actual needs.

Electromagnetic Flow Meter Flow Rate

Electromagnetic Flow Meter Dimensions (Unit: mm)

DN	a	∅D	∅Do	n∅A
15	200	95	65	4*14
20	200	105	75	4*14
25	200	115	85	4*14
32	200	140	100	4*18
40	200	150	110	4*18
50	200	165	145	4*18
65	250	185	145	8*18
80	250	200	160	8*18
100	250	220	180	8*18
125	250	250	210	8*18
150	300	285	240	8*22
200	350	340	295	8*22

Electromagnetic Flow Meter Applications

Tips: How does an electromagnetic flow meter measure liquid flow?

Magnetic flow meters work on the Faraday principle of electromagnetic induction. When an electrically conductive liquid flows through a magnetic field mounted inside a pipe, it generates a voltage proportional to the flow rate. The electrodes inside the flow meter detect this voltage and convert it into a corresponding flow value. This measurement method is independent of the temperature, pressure and density of the liquid and is particularly suitable for measuring a wide range of conductive liquids such as water, sewage and chemical liquids.
