Flat pH Meter Electrode
Price range: $30.99 through $51.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |

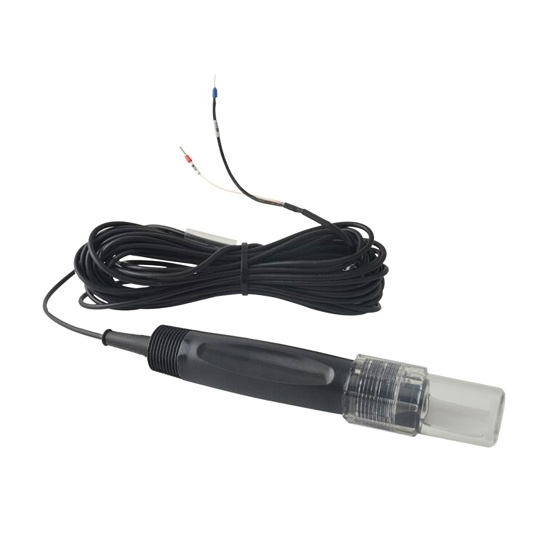

The flat pH meter electrode measures pH from 0-14 with 0.02 accuracy, operates in temperatures from 0-60℃, and has internal temperature compensation. It’s made with a durable PPS/PC shell, installs via 3/4 NPT, and supports cable lengths up to 50m with signal transmission up to 60m. With a 6-month lifespan and high accuracy, it’s ideal for use in food processing, industrial, and lab environments, especially in high temperature or extreme pH conditions.
| Model | T-PHME-PHETE-PH5012 |
| Weight | 1kg |
| Measuring range | 0-14pH |
| Accuracy | 0.02pH |
| Temperature range | 0-60℃ (32-140℉) |
| Temperature compensation * | Internal temperature sensor (NTC 10K) |
| Zero position | 7±0.3pH |
| Compressive strength | 0.6MPa |
| Slope | ≥96% |
| Installation size | 3/4NPT in both ends |
| Shell material | PPS/PC |
| Connection | Direct lead |
| Cable length * | 5m/10m/15m, or other length less than 50m (need customization) |
| Service life | 6 months |
Document
- pH Electrode Catalog
Feature
- Utilizes an aerogel electrode for easy maintenance.

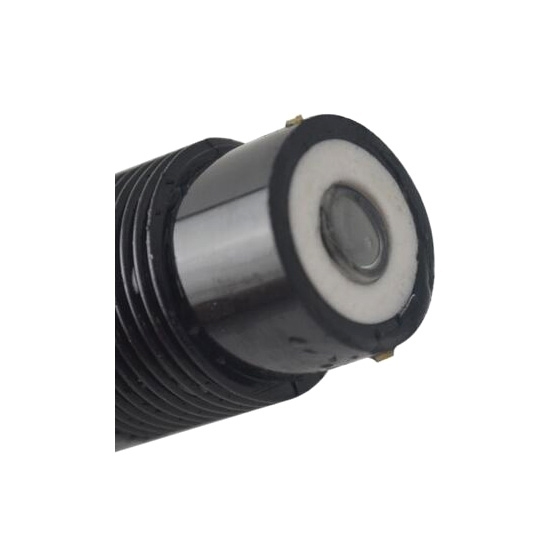

- Features a flat glass bulb with excellent resistance to contamination and impact.
- Ensures high accuracy even in high temperatures or extreme pH conditions.
- Equipped with a high-quality, low-noise cable that supports long-distance signal transmission up to 60 meters.
The pH electrod installation methods:
1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation
Tips: What is a Flat pH Meter Electrode?
A Flat pH Meter Electrode is a specialized sensor designed for measuring the pH levels in liquids and semi-solids. Its flat glass bulb design allows for better resistance to contamination and impact, making it ideal for use in food processing, industrial, and laboratory applications.
