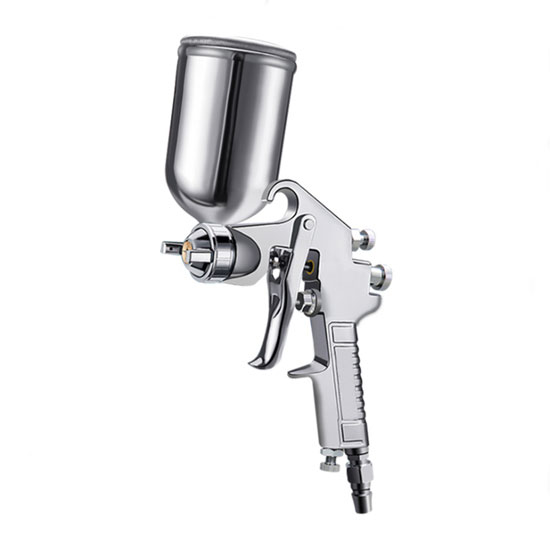

Name: Gravity Feed Air Spray Gun, 400ml, 1.0/1.3/1.5/1.8mm
Brand: Tool
SKU: 1216
Availability: InStock

Gravity Feed Air Spray Gun, 400ml, 1.0/1.3/1.5/1.8mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

55 People watching this product now!

Processed by heat treatment, the air paint sprayer is wear-resisting, long time service and well-sealed. Air spray gun applies in various fields, such as industrial products, automobiles, household, window, marine machineries and so on.

Specification

Model	T-ASG-1358
Type	Gravity Feed Air Spray Gun
Nozzle Diameter Selection	1.0/1.3/1.5/1.8 mm
Spraying Scope	90 – 200 mm
Spraying Cup Capacity	400ml (13.5 Oz)
Working Pressure	0.25 – 0.35 MPa
Air Inlet Size	1/4 inch (6.35mm)
Hose Size	6.5mm
Air Consumption	250 L/Min
Power Source	Air Powered

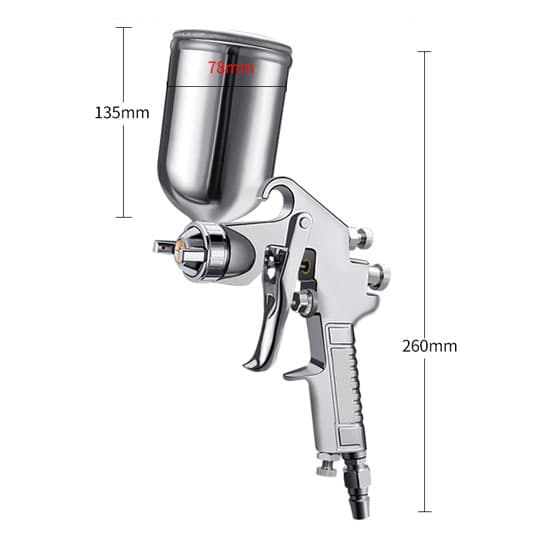

Body Dimension	275mm * 80mm
Weight	0.62kg

Structures of air paint sprayer

Paint spraying cup:The paint spraying cup made of aluminum alloy that is corrosion resistant and sealed. It effectively avoids paint leakage.
Adjustable spraying cap:The spraying cap can be adjusted 360 degrees to control the direction of the spraying scope.
Starting switch:The starting switch is divided into first gear and second gear. First gear can blow off dust, and second gear is painted.
Spraying scope valve:The looser the knob, the smaller the spraying scope, and the tighter the knob, the smaller the spraying width.
Spraying fluid valve:The looser the knob, the more paint, the tighter the knob, the less paint.
Air pressure valve:You can adjust the air pressure valve to get the good atomization effect and paint saving.
Air inlet:The air inlet is designed with integration, you can just connect the air hose to the air compressor to use.

Details

Tips: How to Use the Gravity Feed Air Spray Gun?

Preparatory work: Connect the air inlet of the gravity feed air paint sprayer to the compressed air source. The compressed air must be filtered through and oil-water separator before entering the pneumatic spray gun.
Filling the paint: Mix the paint evenly with the corresponding diluent and no diluent is needed for the mixing paint purchased directly. Impurities in the paint need to be filtered and import the paint into the spaying can.
Adjust the spraying scope, spraying fluid and air pressure valves counterclockwise or clockwise according to the actual needs.
When you use the gravity feed air spray gun, slightly pull the trigger to make the air valve open, but the needle plug doesn’t open. When the compressed air is ejected from the nozzle, the dust on the coating surface can be blown off. Then continue to move the trigger back, the nozzle will spray the paint mist.
Cleaning and maintenance: After use, pour away the remaining material in the paint can and clean the paint with the suitable thinner. The thinner is added to the paint tank for spraying to clean the paint path until it is fully cleaned. Otherwise, the remaining paint left in the paint path will get dry to block and damage the sprayer. After being cleaned, wipe it with a clean soft cloth.
