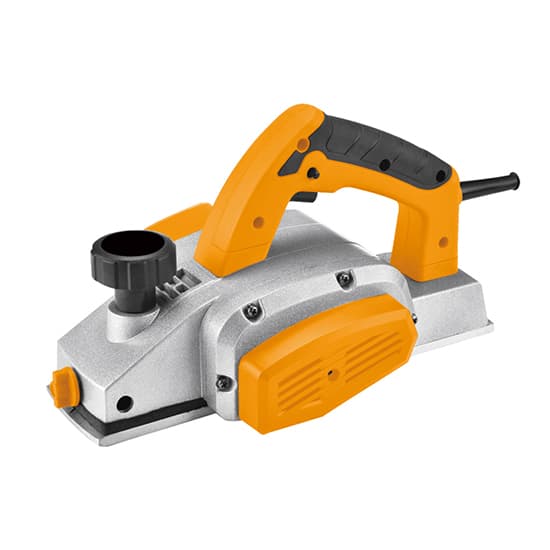

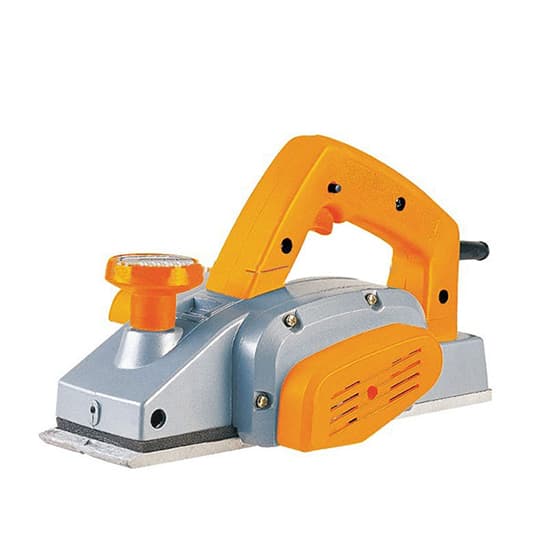

Electrical planer is a handheld power tool for woodworking. The electric wood planer has high rotation speed and best performance. It is widely used in house construction, decoration, wooden door manufacturing, field carpentry operations, etc.

Specification

Model	T-ETPL-CF2823C	T-ETPL-CF2823
Input Power	570W	580W
Rated Voltage	110V, 220V	110V, 220V
Rated Current	5.2A, 2.6A	5.3A, 2.6A
Max. Planing Width	3-1/5 inch (82mm)	3-1/5 inch (82mm)
Max. Planing Depth	3.5mm	1mm
No-Load Speed	15,000rpm	23,000rpm
Weight	4kg	4kg

Features

Handheld electrical planer has a V-groove design, planing smoothly. Chamfering smooth and fast, high working efficiency.
Motor of the electrical planer is all-copper, high temperature resistance, high load, stable performance.

Hand-Held Electrical Planer Configuration

Hand-Held Electrical Planer Application Diagram

Tips: How to deal with uneven planing when using electric planer?

Turn the depth adjustment knob to 0 position.
Use a ruler to check whether the front and rear bottom plates are on the same plane. Normally there will be slight unevenness.
Prepare gasket for adjusting the rear bottom plate. Gasket material can be paper, plastic, or aluminum coke cans. Adjustment method: loosen screws of the rear bottom plate and remove the rear bottom plate. Add the gasket to screw hole in the lower position. Install the rear bottom plate and screw on screws.
Measure again at this time, the front and rear bottom plates are already on the same plane.
Planer tool adjustment. Place gasket on the front and rear bottom plates, and then adjust the depth of planer tool. Pay attention when planer tool is centered, cutting edge should be on the same plane as the front and rear bottom plates.
