Name: Hand-held Laser Ultrasonic Distance Measure Meter
Brand: Tool
SKU: 1384
Availability: InStock

Hand-held Laser Ultrasonic Distance Measure Meter

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

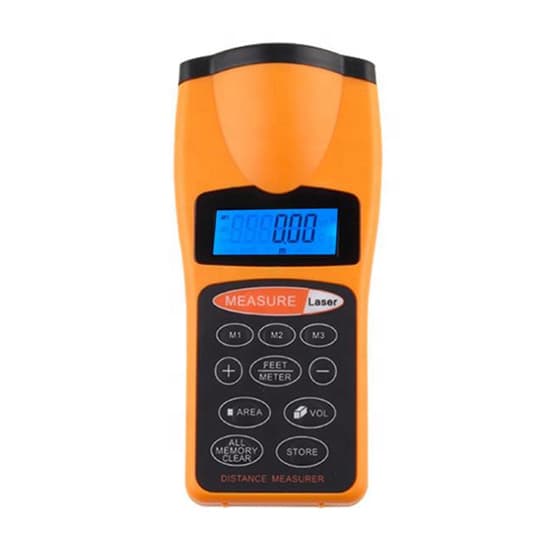

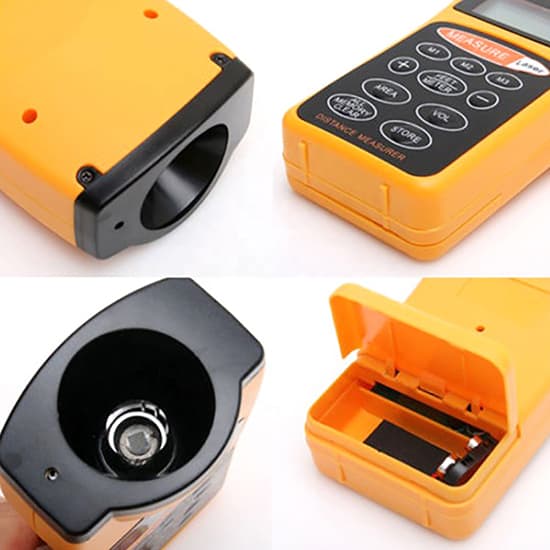

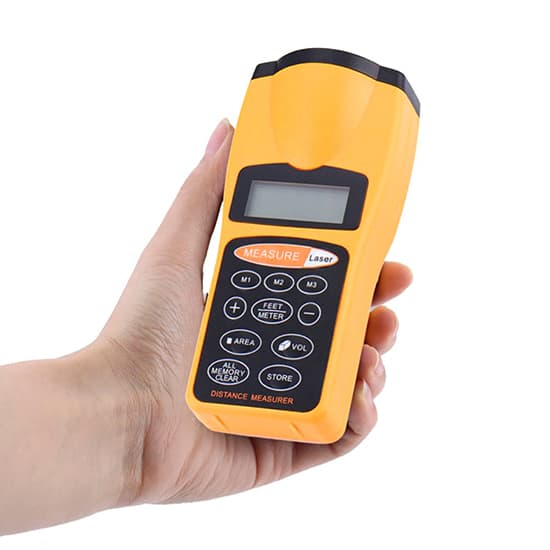

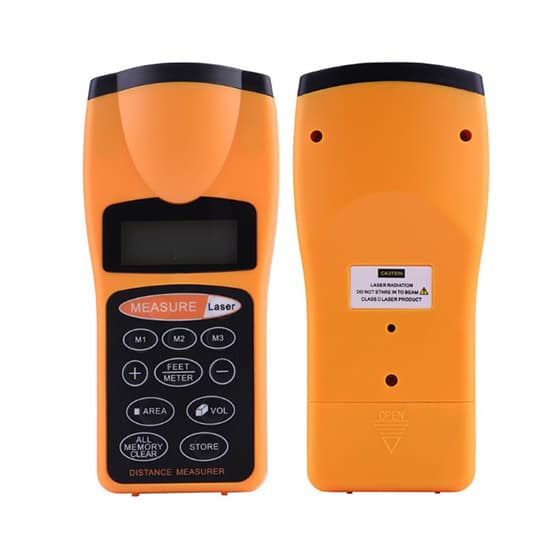

Portable hand-held laser ultrasonic distance meter can measure distance in a straight-line from 50cm~18m, digital LCD disply, easy to read the distance, area and volume of a room.

Specification

Model	T-CP3007
Measuring Range	50cm~18m (2~60 ft)
Accuracy	±0.50%
Power Source	1x 9V battery (not included)
Resolution	0.01m
Units of Measure	Meters/ Feet
Power Consumption	0.02W
Display	LCD
Function	1. M, ft units are convertible 2. Laser positioning 3. Quickly measure distance, area and volume 4. Automatic calculation of area, volume addition and subtraction 5. Automatic shut-down
Working Frequency	40kHz
Working Temperature	0℃ ~ 50℃
Application	Home decoration, Engineering construction
Dimension	1627652mm
Weight	200g
Packing Included	1 x Ultrasonic Distance Measure 1 x User Manual

Application

Tips: How to use laser ultrasonic distance meter correctly?

Laser ultrasonic distance meter tests the distance between the obstacle and the bottom of the machine, not the distance from the top. If you take the top as the benchmark, you will find that the displayed distance and the actual distance will have an error of about ten centimeters.
When measuring, keep the body and the wall as vertical as possible, especially when the measured distance is farther, the more vertical, the higher the accuracy of the measurement data, otherwise the greater the slope, the greater the error. When measuring long distances, it is recommended to turn on the laser positioning to keep it as vertical as possible.
Some curtains can absorb sound waves, causing inaccurate measurement by the ultrasonic distance measuring tool. If you are measuring in a room with curtains, please put the curtain on the other side of the window first, and then close the window.
If there is an obstacle in the measured distance, the data measured by ultrasonic is incorrect. For example, tables, chairs or other obstacles. If you are not sure whether your measurement is correct, then you take multiple measurements from different angles.
If you need to measure uneven ground or very narrow corners, the data will be wrong. If the distance to be measured is greater than 60 feet (18.288 meters), stand in the center of the house, that is, measure from the midpoint to each side, and then summarize the data.
