Name: Handheld Sound Level Meter, 30 to 130 dB
Brand: Tool
SKU: 1556
Availability: InStock

Handheld Sound Level Meter, 30 to 130 dB

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

39 People watching this product now!

The portable sound meter is designed for fast and accurate noise detection, with a measurement range of 30 to 130 dBA and 30 to 130 dBC, a frequency range covering 30Hz to 8KHz, and a dynamic range of 50 dB, allowing users to obtain accurate noise data in noisy environments.The Sound dB meter supports both fast and slow time-weighting functions, which makes it suitable for use in a variety of industrial, construction or domestic settings.

Specification

Model	T-HT602A	T-HT602B
Display Screen	LCD display
Measure Range	30-130dBA	30-130dBC
Frequency	30Hz- 8KHZ
Dynamic Range	50 dB
Accuracy	±1.5dB (94dB@1KHz)	±5dB (94dB@8KHz)
Frequency Weighting	A weighting	C weighting
Time Weighting	FAST: 125ms, SLOW:1sec
Microphone	Electret condenser
Temperature Range	-20℃ ~60℃ (-4.0°F~140.0°F)
Temperature Accuracy	0℃~45.0℃ (32°F~113°F): ±1.0℃/2.0°F; Others: ±1.5℃/3.0°F
Humidity Range	0% -99.9%RH
Humidity Accuracy	20%~80%: ±5.0RH; Others: ±6.0RH
Operating Conditions	0~50℃, <80%RH, altitude less than 2000m
Storage Conditions	-10~50℃, <80%RH remove the battery
Auto Power Off	10minutes
Power	3*1.5V AAA batteries
Dimension	1425828mm
Net Weight	214g

Handheld Sound Level Meter Document

Handheld Sound Level Meter User Manual.pdf

Portable Sound Level Meter Dimension (unit: mm)

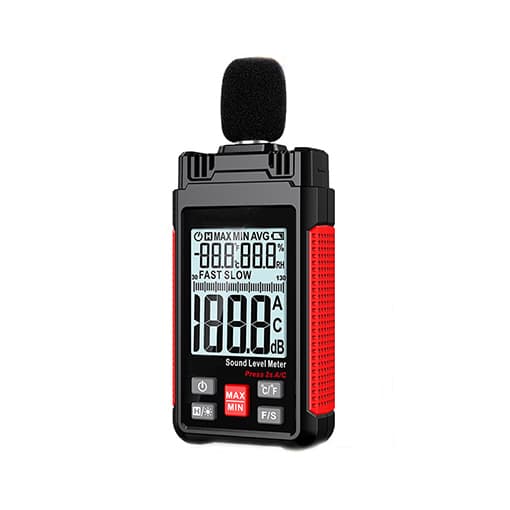

Handheld Sound Level Meter with Panel Details

Portable Decibel Meter Applications

Tips: Do handheld noise level meters support data storage?

Many modern portable sound meters support data storage for recording and reviewing measurements. These handheld spl meters often have built-in memory that allows the user to save multiple sets of measurements, and some models even allow data to be exported to a computer for analysis via USB or wirelessly. Data storage is especially important for long-term noise monitoring or for applications that require multiple measurements.
