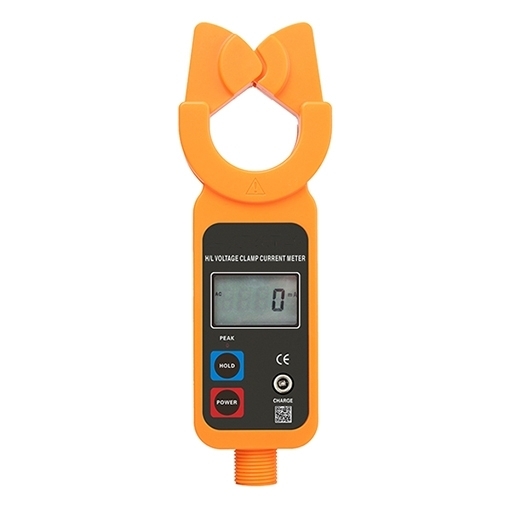

Name: High and Low Voltage Clamp Meter, 0.00mA-1200A
Brand: Tool
SKU: 1355
Availability: InStock

High and Low Voltage Clamp Meter, 0.00mA-1200A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

64 People watching this product now!

The Bluetooth version of the high and low-voltage clamp meter has functions such as peak holding, data holding, data storage, and Bluetooth. Its dedicated clamp ammeter can easily clamp or remove the tested wire by pressing or pulling out the insulation rod, saving time and speed, ensuring high precision, reliability, and stability for uninterrupted testing all year round.

Details of High and Low Voltage Clamp Meter

The current clamp adopts magnetic shielding and CT digital integration technology, with strong anti-interference ability, high precision and stable test.
The innovative automatic plug-in and pull-out structure makes it easy for the instrument to clamp or extract the tested wire by pressing or pulling the insulating rod, saving time and convenience.
Through Bluetooth communication, after installation, the APP (support android system) mobile terminal can be used for test operation and viewing test records.

Specifications

Model	SISCO-ETCR9000A
Current Range	0.00mA-1200A AC
Resolution	1mA
Accuracy	0mA-99.9A: ±1%rdg±5dgt
	100A-599: ±1.5%rdg±5dgt
	600A-1200A: ±2%rdg±5dgt
CT Size	φ48mm
Meter Dimensions	76mm×255mm×31mm
Weight	6kg
Power Supply	Ablelithium battery DC 7.4V 600mAH
LCD Size	47mm*28.5mm
Sampling Rate	2 times/second
Communication Interface	Bluetooth, straight distance 10m
Data Storage	99 groups, stored process display MEM symbol, “FULL” symbol display indicate that storage full
Peak Hold	Automatically hold the highest test value
Data Hold	In usual test mode, press the HOLD key to keep data, “HOLD” symbol display
Overflow Display	Exceed measure range overflow function: “OL A” symbol display
Polarity Indication	In DC current test auto-identified and display the “-” symbol
Auto Shut Down	15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Battery Voltage	When the battery voltage is lower, the low battery voltage symbol “display and reminds us to charge.
Data Access	“MR” symbol indication, can access all storage data
Line Voltage	Below 110kV current test, operate with insulation rods
Insulation Rod Dimension	Ф32mm 1m×5 piece
Insulation Rod Withstand Voltage	110kV ( 5PCS insulation rod connection)
Accessories	Meter: 1PCS; Receiver: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET

Applications

The Bluetooth version of high and low-voltage clamp ammeter is widely used in substations, power plants, industrial and mining enterprises, as well as testing stations and electrical maintenance departments for current detection and field electrical operations. It can also be used for high and low voltage ratio testing, which measures the high and low voltage currents of the primary and secondary circuits separately, and then calculates the high and low voltage ratio. Insulated rods are lightweight, with characteristics such as moisture resistance, high-temperature resistance, impact resistance, bending resistance, and high insulation.

How to operate the clamp meter correctly?

Safe operation
Make sure to understand whether the clamp gauge is suitable for both AC and DC use, and carefully read the instruction manual.
The voltage of the tested circuit shall not exceed the voltage value specified by the clamp meter to prevent grounding accidents or electric shock hazards.
When measuring, maintain a safe distance and avoid contact with live parts.
When using a clamp meter in a high-pressure environment, it should be operated by two people, wearing insulated gloves and shoes, standing on an insulated pad, and complying with relevant safety regulations.
During maintenance, do not operate with electricity to prevent electric shock.
Measurement operation
Measure the current of only one phase of the wire at a time, and place the wire in the center of the clamp window.
Estimate the current magnitude before measurement, choose an appropriate range, and avoid measuring high currents with low current settings.
The jaws should be tightly closed. If there is any noise, check whether the magnetic circuit joint surface is smooth and wipe it clean.
When measuring small currents, the wire can be wound a few times and placed in the clamp. The actual current is the reading divided by the number of turns.
Other precautions
After the measurement is completed, place the conversion switch in the maximum range or off position.
When not in use for a long time, remove the battery and store it to prevent battery leakage and damage to the instrument.
Regularly clean the instrument, keep it dry, and store it in a suitable environment.
