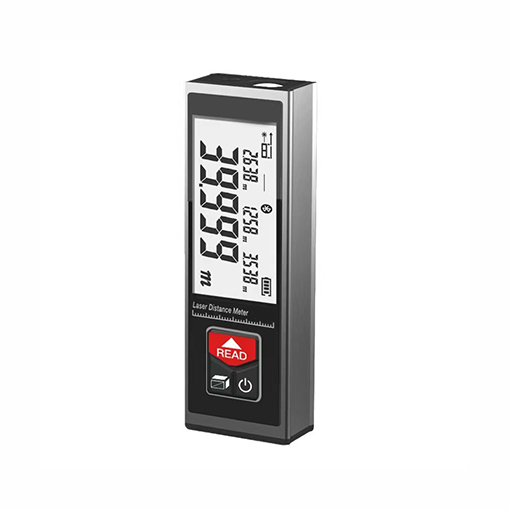

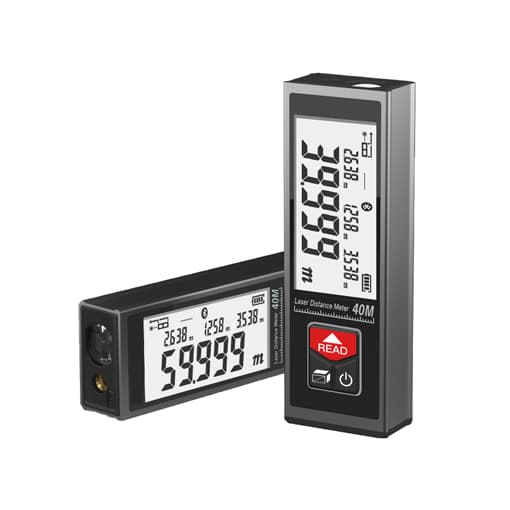

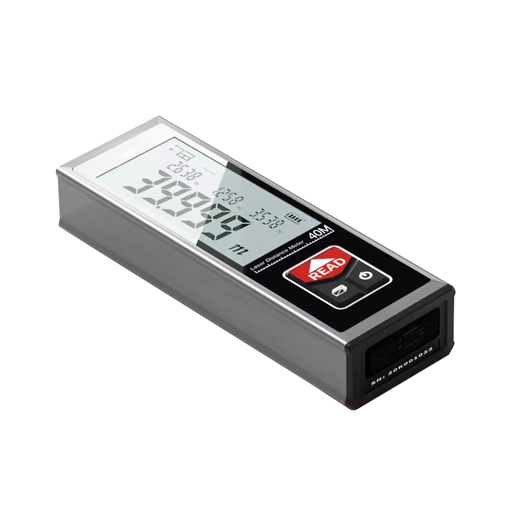

Laser Distance Meter with Bluetooth, 40/60m
Price range: $31.99 through $56.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
This 40m/60m Bluetooth laser distance meter has a high precision measurement capability with an error of only ±2mm, ensuring an accurate and efficient measurement experience. Equipped with a 3.7V lithium battery, it can provide up to 8,000 operations with 500 charges. The Bluetooth function allows you to easily connect to your phone or tablet for data transfer, the auto shut-off and laser off function ensures battery life, and the compact size makes it easy to carry.
Specification
| Model | T-SW-BT40 | T-SW-BT60 |
| Measuring Range | 40m | 60m |
| Measurement Accuracy | ± (2mm + d* parts per million)* | |
| Minimum Display Unit | 0.0001m | |
| Continuous Measurement | Yes | |
| Area Volume Measurement | Yes | |
| Indirect Measurement | Yes | |
| Self-calibration Function | Yes | |
| Max/Min | Yes | |
| Sound On/Off | Yes | |
| Sound Alert | Yes | |
| Bluetooth | Yes | |
| Laser Type | 2 level 630-670nm,<1mW | |
| Auto Off Laser Time | 20s | |
| Auto Power Off Time | 300s | |
| Storage Temperature Range | -20℃~60℃ | |
| Operating Temperature Range | 0℃~40℃ | |
| Storage Humidity | 20%-80%RH | |
| Battery | 3.7V 850mAh lithium battery | |
| Charge and Discharge Times | 500 times | |

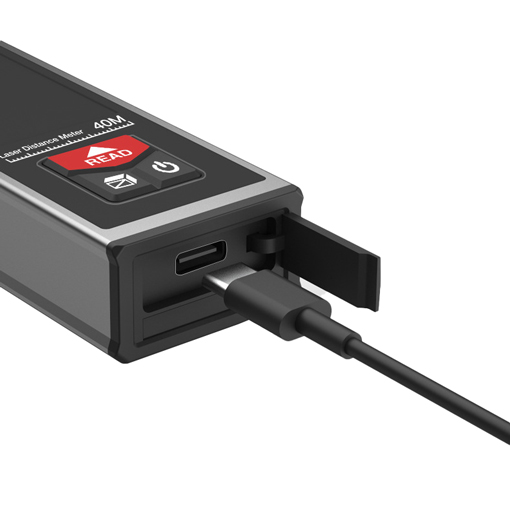

| Charge Specification | DC 5V ≥1A Type-C USB enclosure | |
| Number of Full Charge Operations | 8000 times | |
| Screen | Segment LCD | |
| External Dimension | 100.3*33.4*18.3mm | |
| Net Weight | 180g | |
ATTENTION: “D” indicates the actual distance.
** In harsh environment, such as: strong sunlight, excessivelyfluctuated ambient temperature, weak reflection effect of theobject’s surface and the low battery, a large error will occur inmeasurement results, so a reflecting plate is needed.
Bluetooth Laser Distance Meter Document
- Bluetooth Laser Distance Meter User Manual.pdf
Bluetooth Laser Distance Meter Dimension (unit: mm)
Bluetooth Laser Distance Meter Deatail
Bluetooth Laser Distance Meter Multiple Measurement Methods
Tips: How do I pair my Bluetooth laser rangefinder with my cell phone?
To pair your bluetooth laser distance meter with your cell phone, first make sure that Bluetooth is turned on for both the rangefinder and your cell phone. Search for the device in your phone’s Bluetooth settings and when the rangefinder shows up in the list, tap Pair. Some devices may require you to enter a default pairing code, which can usually be found in the device manual. Once paired, you can receive measurements through the rangefinder’s companion app or directly through the app on your phone. Make sure the app is the latest version for optimal connection stability and feature support.
