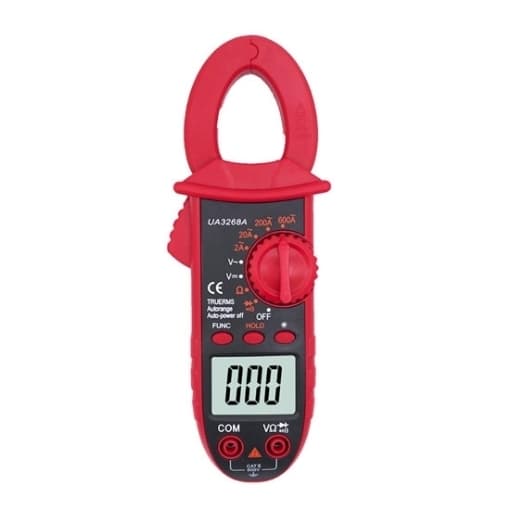

High-precision true RMS clamp meter, AC current range 0-600A, TRMS function, maximum clamp size 28mm, 4-digit display, maximum value 1999, with data hold, low battery indicator.

Details

Data hold key

Used to lock the current measurement value.
When you need to keep the real-time value, press the HOLD key to judge and record.
Function range knob, precise gear position.

Display screen

Displays high-definition backlight, low-voltage display.
Wear-resistant silicone shell, long service life.
Pen nest, smooth and stable.

Specifications

Basics	Model	T-UA3268A
	Weight	160g
	Size (LWH)	1855125mm
	Display	4 digit LCD display
	Maximum display value	1999
	Power supply	DC 3V, 2 AAA batteries
	Maximum jaw opening size	28mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)
	Accessories	A pair of test probes, a user manual, 2 AAA batteries
Functions	Item	Range	Accuracy
	AC current	600A	±(2.5%+5 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.5%+5 digits)
	Resistance	2MΩ	±(1.0%+4 digits)
Special functions	TRMS	True RMS measurement for sine wave signal
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Manual range selection
	Backlight	Backlight for LCD display

Applications

The clamp meter is one of the essential test tools in daily maintenance work. It is mainly used to test voltage, current, frequency and other related parameters, requiring it to have higher test resolution, test accuracy and more test functions. Applications mainly include industrial control, industrial equipment, commercial, industrial and residential electrical systems, and HVAC.

Tips: True RMS Zero Input Characteristics of Clamp Meter

To test the measurement of a sine wave signal, the true RMS measurement method has less error than the traditional averaging response method. True RMS clamp meters accurately measure sine waves, but when the signal under test is not being input (AC voltage function selected, input shorted), the AC function may show a reading between 1 and 50. These deviated readings are normal. They do not affect the accuracy of the clamp meter in measuring AC over the specified measurement range. True RMS requires a certain level of input signal to make a measurement. Therefore, the AC voltage and current ranges are specified between 2% and 100% of the full range.
