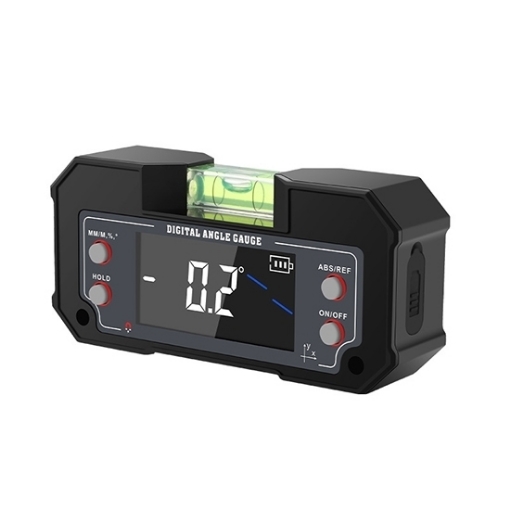

Name: Mini Digital Inclinometer with Level Bubble, Single/Dual Axis
Brand: Tool
SKU: 1471
Availability: InStock

Mini Digital Inclinometer with Level Bubble, Single/Dual Axis

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

30 People watching this product now!

The high precision 2 axis digital inclinometer with level bubble represents the next generation of digital clinometer technology, designed for professionals who demand exceptional accuracy and reliability. This calibrated inclinometer features advanced dual-axis sensors capable of simultaneous measurement with high precision inclinometer accuracy. The built-in strong magnetic base ensures secure attachment to ferrous surfaces, making it superior to traditional mechanical inclinometers. With absolute zero referencing and clear digital display, this instrument is perfect for those seeking the best digital inclinometer for machining, construction, and geotechnical monitoring applications.

Feature

Dual-axis inclinometer with simultaneous measurement capability
High-precision sensors with ±0.2° accuracy (single axis)
Strong magnetic base for secure attachment
Type-C charging interface for convenient power supply
Absolute zero calibration based on horizontal plane
Clear digital LCD display with 0.1° resolution
Compact design functioning as a miniature inclinometer
Automatic power saving mode
Durable construction suitable for workshop environments
Portable size for easy handling and storage

Specification

Model	T-WD-112
Measuring Range	Single Axis: 4×90° / Dual Axis: ±60°
Resolution	0.1°
Accuracy	Single Axis: ±0.2° / Dual Axis: ±0.3°
Repeatability	0.1°
Charger Interface	DC5V 400mA (Type-C)
Power	3.7V Lithium Battery
Operating Environment	0℃ to 40℃ (Humidity ≤80%)
Magnet	Magnetic adsorption for secure placement on workpieces
Reference	Absolute zero measurement based on the horizontal plane

Detail

Dimension (Unit: mm)

Application

3 Tips for Use Mini Digital Inclinometer with Level Bubble

Maximizing Magnetic Base Effectiveness
Ensure the measurement surface is clean and free of debris to guarantee strong magnetic adhesion. When working on non-ferrous materials, use an auxiliary steel plate as an intermediate base. Avoid sliding the instrument on rough surfaces to prevent damage to the magnetic base.
Ensuring Measurement Accuracy
Allow the small inclinometerto with level bubble stabilize for 2-3 seconds after placement before taking readings. Regularly perform zero calibration on a known level surface. Avoid taking measurements in environments with strong vibrations or magnetic interference to maintain the high accuracy tilt sensor performance.
Proper Battery Charging and Storage
Use only the recommended 5V power adapter for charging. Avoid complete discharge of the lithium battery to extend its lifespan. If not used for extended periods, store the device with about 50% charge in a dry environment at room temperature, ensuring your digital slope indicator inclinometer remains ready for future use.
