Name: Noise Level Detector, 30/40 to 130 dB
Brand: Tool
SKU: 1558
Availability: InStock

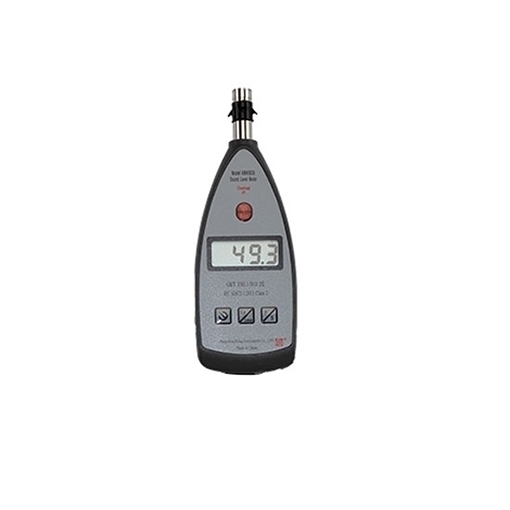

Noise Level Detector, 30/40 to 130 dB

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

59 People watching this product now!

The noise level detector is capable of measuring a selectable noise range of 30/40 to 130 dB, with 20 Hz～12.5 kHz frequency range, and A/C weighting. Decibel sound level meter has high sensitivity design captures subtle variations, making it suitable for use in the home, office, or industrial environments.

Specification

30 to 130 dB table

Model	T-SLM-AWA-5636-4
Microphone Model	AWA14421B
Measuring Range	40 dB(A)～130 dB(A)
Frequency Range	20 Hz～12.5 kHz
Frequency Weighting	Parallel (simultaneous) A, C, Z for each channel
Time Weighting	Parallel (simultaneous) F, S, Peak for each channel
Monitor	Three and a half LCD
Output Interface	AC, DC, PWM, RS232, Bluetooth (Optional)
Main Measurement Index	Lp, Leqt, Lpeak, Leq, T, Lmax, Lmin, SEL, Lex8h, LAVG, TWA, DOSE, Ln (n=5, 10, 50, 90, 95), SD, E

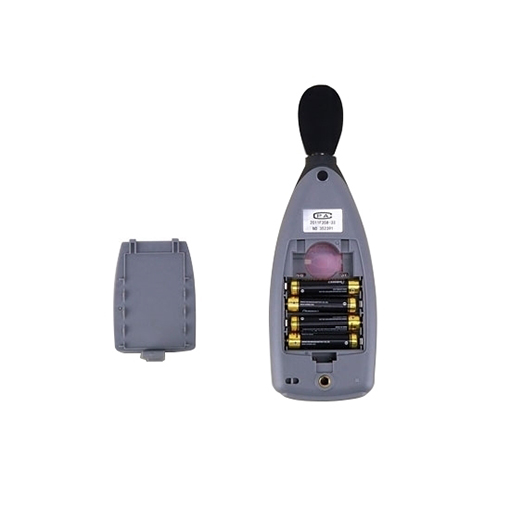

Power Supply	4 (7#) alkaline batteries, can work continuously for more than 10 hours, optional lithium battery: after fully charged, can work continuously for more than 24 hours, can be connected to an external 5 V power supply, working current <90 mA
Filter Selection	1/1 OCT
Data Storage Function	8000 Groups
Recording Function	Optional
Overrun Indication	Limit can be set
Dimension	190mm x 68mm x 27mm
Weight	1.5 kg
Operating Temperature	-10 ℃～50 ℃
Warranty	12 Months

40 to 130 dB table

Model	T-SLM-AWA-5636
Microphone Model	AWA14421B
Measuring Range	40 dB(A)～130 dB(A)
Frequency Range	20 Hz～12.5 kHz
Frequency Weighting	Parallel (simultaneous) A, C, Z for each channel
Time Weighting	Parallel (simultaneous) F, S, Peak for each channel
Monitor	Three and a half LCD
Output Interface	AC, DC
Main Measurement Index	Lp、Lmax
Power Supply	4 (7#) alkaline batteries, which can work continuously for more than 12 hours
Dimension	190mm x 68mm x 27mm
Weight	1.5 kg
Operating Temperature	-10 ℃～50 ℃
Warranty	12 Months

Noise Level Detector Panel Display

Noise Sound Level Detector Spplications

Tips: How do I use a noise level detector to measure environmental noise?

Using the sound level meter is very simple. First, make sure that the decibel meter is fully charged or that the batteries are properly installed. Turn on the power and point the detector at the source of the noise you want to measure and keep it at a moderate distance. The screen will display the decibel level (dB) of the noise in real time and record the noise data you have measured. If the tester is equipped with a data storage function, you can also save the measurement records for later review.

Measuring Range *

30 ~ 130 dB [-$2,185.96]

40 ~ 130 dB

Recording Function *

Yes (only 30 ~ 130 dB)
