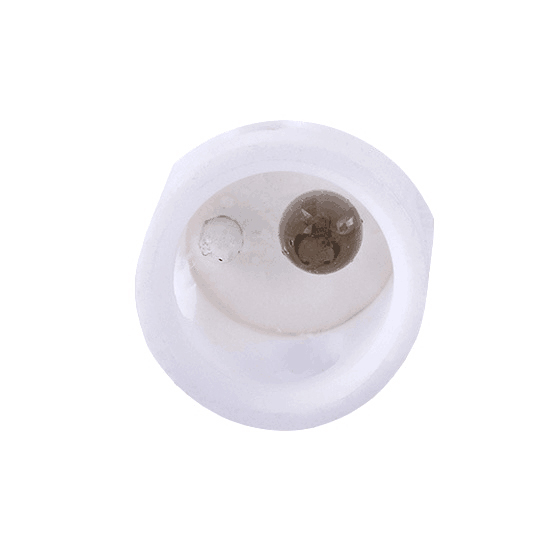

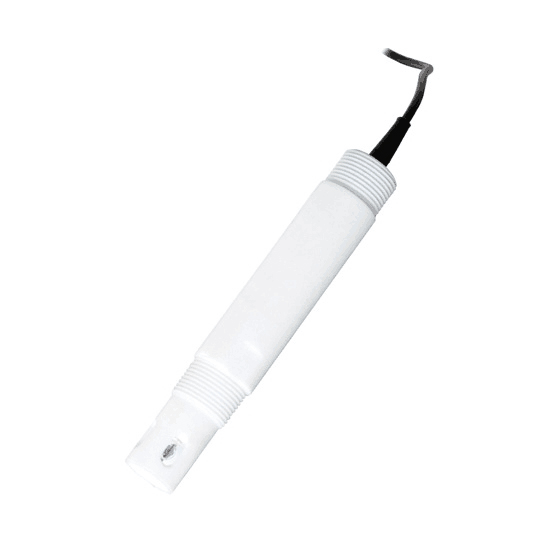

pH Meter Electrode for Chemical
Price range: $53.99 through $74.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
PTFE pH electrode supports long-distance signal transmission, with customizable cable lengths of 5m, 10m, 15m, or other lengths up to 50m, ensuring flexibility in installation. It has a service life of up to 6 months under regular use.
Specification:
| Model | T-PHME-PHETE-PH5013A |
| Weight | 1kg |
| Dimension | Length: 158mm, diameter: 25.4mm |
| Measuring range | 0-14pH |
| Accuracy | 0.02pH |
| Temperature range | 0-60℃ (32-140℉) |
| Temperature compensation * | Internal temperature sensor (NTC 10K) |
| Zero position | 7±0.3pH |
| Compressive strength | 0.6MPa |
| Response time | 15s |
| Installation size | 3/4NPT in both ends |
| Shell material | PTFE |
| Connection | Direct lead |
| Cable length * | 5m/10m/15m, or other length less than 50m (need customization) |
| Service life | 6 months |
Document
- pH Electrode Catalog
Feature
- Specifically designed for strong acid and alkali environments, offering excellent corrosion resistance.
- Features a low-impedance glass sensitive membrane for enhanced performance.
- Provides more accurate and stable measurement results, even in harsh conditions.
- Equipped with a high-quality, low-noise cable capable of transmitting signals over long distances, up to 60 meters.
The pH electrod installation methods:
1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation
Tips: Does pH meter electrode for chemical require maintenance or refilling with electrolyte?
No, the electrode uses a maintenance-free gel electrolyte, meaning there is no need for additional electrolyte refilling during its service life.
| Temperature Compensation * | , |
|---|---|
| Cable Length * | , , |
