Description

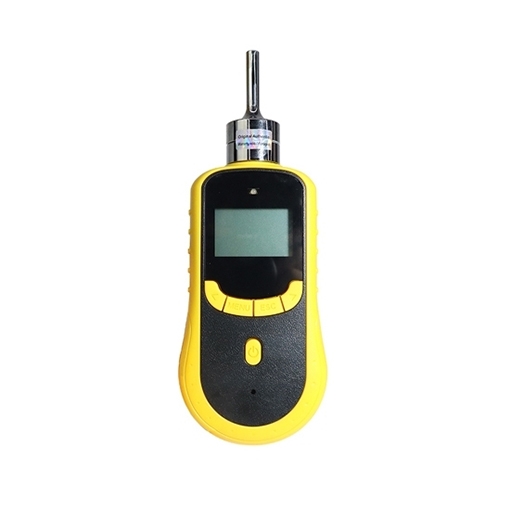

Good price handheld CO2 gas monitor with measurement range from 0 to 1000/10,000/20,000 ppm, or 0-10%/50%/100%VOL can meet a variety of application requirements. Its lightweight and portable design makes it suitable for indoor and outdoor environmental monitoring. Dual-stage audible and visual alarm system and adjustable pump suction sampling method enhance the convenience and safety of use. The easy-to-use LCD operation interface makes it easy for users to master.
Specification
| Model | GD200-CO2 |
| Sampling Method | Pump type, flow rate can be up to 750ml/min |
| Detection Principle | Infrared |
| Gas | Carbon Dioxide (CO2) |
| Range (Optional) | 0 to 1000 ppm, 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000 ppm, 0 to 20000 ppm, 0 to 50000 ppm; 0 to 10% VOL, 0 to 20% VOL, 0 to 25% VOL, 0 to 30% VOL, 0 to 50% VOL, 0 to 100% VOL |
| Resolution | 1 ppm (0-1000ppm ~ 0-50000ppm); 0.01% VOL (0-10%VOL ~ 0-100%VOL) |
| Accuracy | ≤±3% F.S. |
| Responce Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |

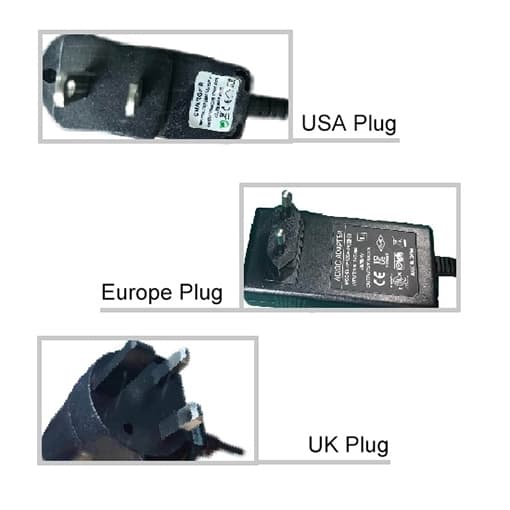

| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | Ex ia llC T4 |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |

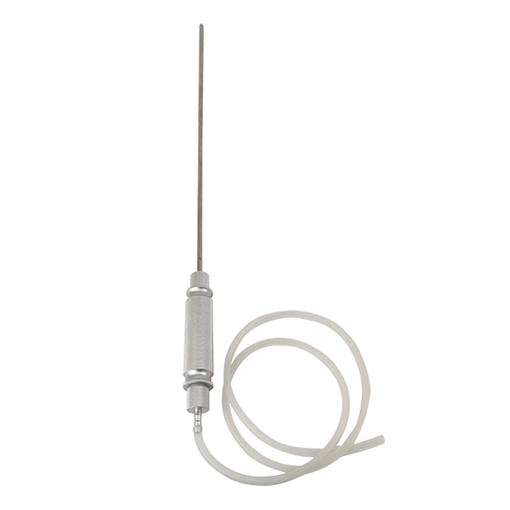

| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
Portable Gas Monitor User Manual
- Tool Gas Monitor User Manual.pdf
- Tool Gas Monitor Data Downloading Operation Instruction.pdf
Communication Protocol
- Tool Handheld Gas Monitor Communication Protocol V1.0.pdf

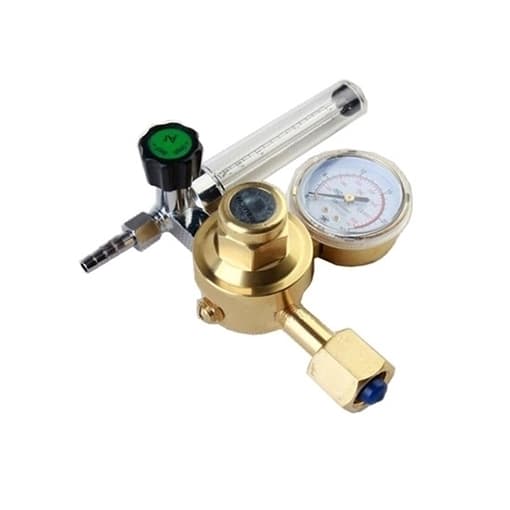

Portable Gas Monitor Calibration Accessories – Gas Pressure Regulator
- Tool Single Stage Pressure Regulator User Manual
Gas Detector Software
- Tool Portable Gas Monitor DataExport Software
Portable CO2 Gas Monitor Features
- Original imported high-precision sensors to ensure the accuracy and reliability of the test results.
- Fast data transfer via USB interface with optional download and print functions.
- Multi-functional display interface with optional display of gas type, concentration, maximum value, local time and ambient temperature.
- Operation interface with multi-language support, easy switching and friendly user experience.
- Built-in miniature sampling pump, suction power can be adjusted in ten gears, and with explosion-proof qualified certification, excellent safety performance.
Gas Monitor Functions
- Real-time monitoring of gas concentration in the environment or confined space, with automatic alarm for exceeding the standard.
- Built-in self-calibration function and zero calibration function ensure accurate and reliable monitoring.
- One key to restore the factory settings, to avoid the trouble caused by misoperation.
- Equipped with temperature and pressure compensation function, adapting to gas monitoring under different environmental conditions.
- Dual-stage sound and light alarm system, alarm point can be customized, flexible response to various situations.
- Built-in high-capacity lithium polymer rechargeable battery, providing long life.
- Adopt pump suction sampling mode, adjustable suction force to ensure accurate sampling.
- Made of special engineering plastics with anti-slip, waterproof, dustproof and explosion-proof features.
Portable Carbon Dioxide Gas Monitor Details
Applications
Tips: What do I need to be aware of when using the portable carbon dioxide gas monitor?
Please ensure the following:
- Calibrate the CO2 gas tester regularly to ensure accurate monitoring data.
- Avoid using it in extreme temperature and humidity environments as this may affect the performance of the gas monitor.
- Make sure the sampling probe is clean to avoid clogging.
- Charge the device after each use to keep the battery fully charged.
- Avoid strong vibration or shock to avoid damage to the device.
- Store in a dry, well-ventilated place to prevent the effects of moisture.
