Name: Rotary Hammer with SDS Drill, 850/1050W, 38mm
Brand: Tool
SKU: 66
Availability: InStock

Rotary Hammer with SDS Drill, 850/1050W, 38mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

40 People watching this product now!

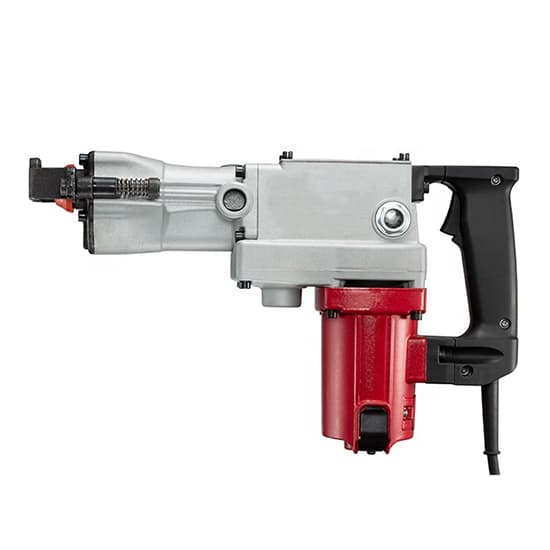

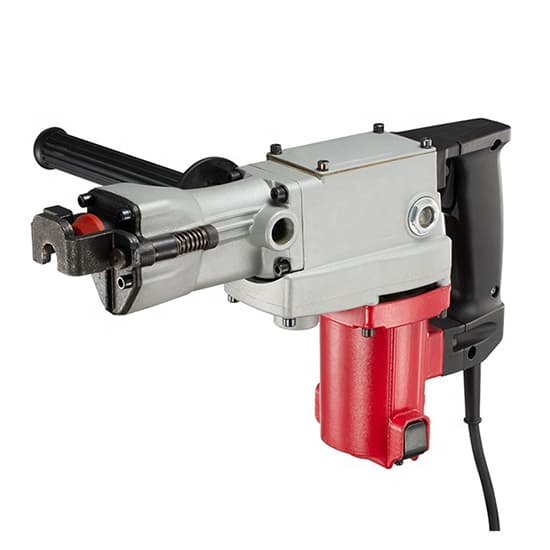

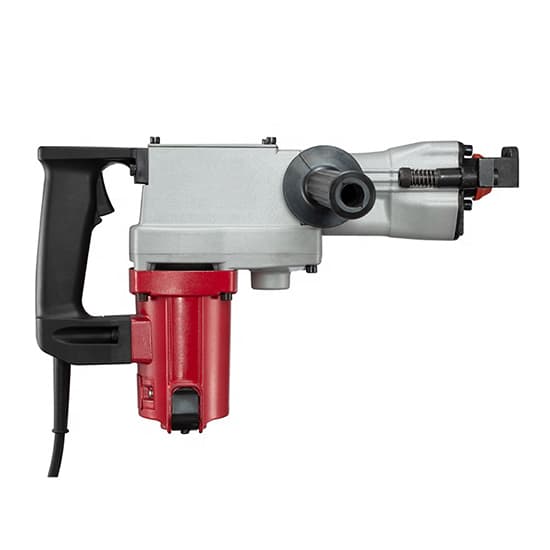

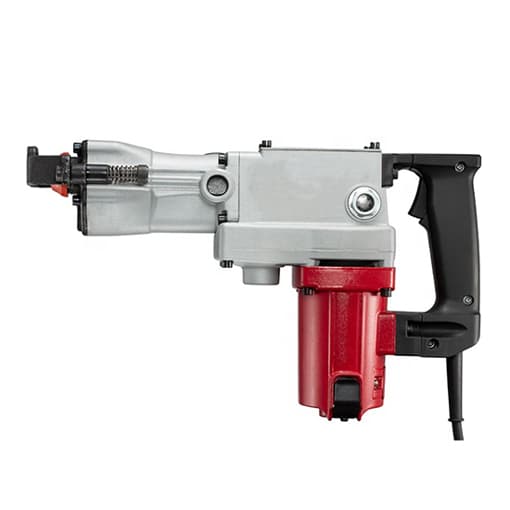

Rotary hammer is a multifunctional electric hammer with SDS drill bit. Its High-performance motor provides industrial-grade high power, suitable for drilling and hammering of metal, wood, stone, concrete, ceramic, aluminum alloy, etc.

Specification

Model	T-RTHM-8038
Drilling Diameter	38mm (1-1/2 inch)
Function	hammering, drilling
Voltage	230V
Frequency	50Hz
Rated Power	850W, 1050W
No-load Speed	500rpm
Hammering Rate	4000bpm
Impact Energy	8.1J
Weight	7.4kg
Standard Accessories	3 SDS drill hammer bits (8, 10, 12*150mm), ruler, carbon brush, dust cover, tool box

Rotary Hammer Structure Diagram

Tips: Correct operation method of rotary hammer.

Impact drilling.
1. Turn the function knob to impact drilling position.
2. Put drill bit to the position to be drilled, and then toggle the switch trigger. Hammer drill only needs to be pressed slightly, so that the chips can be discharged freely, without pressing hard.
Chiseling and breaking.
1. Turn the function knob to the hammer only position.
2. Use the own weight of rotary hammer to work, no need to push hard.
Drilling.
1. Turn the function knob to the drilling (no hammering) position.
2. Put the drill bit on the position to be drilled, and then pull the switch trigger. Push it slightly.
