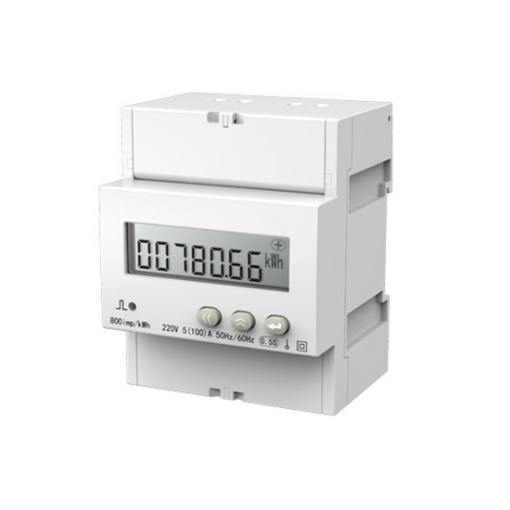

Name: Single Phase DIN Rail Digital kWh Meter
Brand: Tool
SKU: 77
Availability: InStock

Single Phase DIN Rail Digital kWh Meter

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

13 People watching this product now!

Single-phase DIN rail digital kWh energy meter, with Class 1 accuracy, simple and easy-to-use interface, no adjustment required for long-term use. The energy meter uses microelectronics and digital processing technology to measure electrical energy, which is accurate and reliable. It is an ideal basic kWh metering instrument and is widely used in rail transportation, smart switch cabinets, smart buildings, smart factories and energy management systems.

Specification

Model	T-DDS1946
Accuracy Grade	Grade-1 accuracy for active energy
Phase	Single phase (2 wire)
Rated Voltage	230V
Current Input	Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency	50/60Hz
Display Mode	LCD display
Display Digits	7
Energy Pulse	1 energy pulse output, pulse width (80±20%) ms
Measurement Range	Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface	Modbus-RTU protocol or DL/T 645 protocol
IP Protection	IP54 (panel) /IP20 (case)
Certificate	CE/ ISO/ MID
Warranty Period	12 months
Dimension	63.57290mm
Weight	2.0kg
Installation	Din rail 35mm
Work Temperature	-10℃~55℃
Storage Temperature	-25℃~70℃

Dimension (unit=mm)

Wiring

Tips: What is kilowatt-hour in the electricity meter?
A kilowatt-hour (unit symbol: kW⋅h or kW h, commonly written as kWh) is a non-SI unit of energy equal to 3.6 megajoules (MJ) in SI units, which is the energy delivered by one kilowatt of power for one hour. Kilowatt-hours are a common billing unit for electrical energy supplied by electric utilities. Metric prefixes are used for multiples and submultiples of the basic unit, the watt-hour (3.6 kJ).
