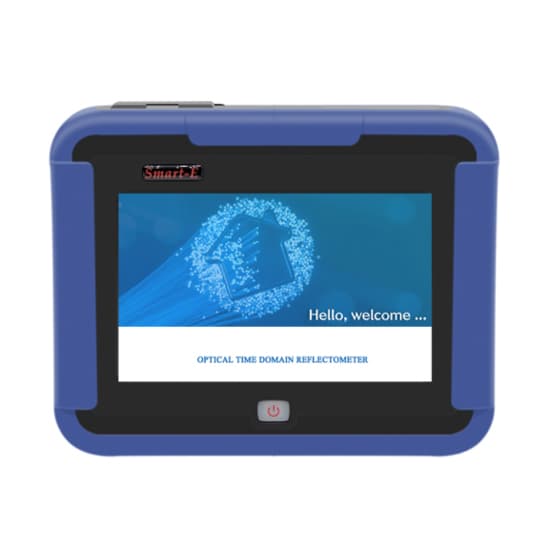

Name: Smart OTDR Fiber Optic Tester, 1625nm, 20dB
Brand: Tool
SKU: 1515
Availability: InStock

Smart OTDR Fiber Optic Tester, 1625nm, 20dB

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

47 People watching this product now!

The OTDR measures fiber attenuation, splice loss, and fault location. It features a 1625nm wavelength, 20dB dynamic range, and is compatible with single-mode fiber. With large internal storage and expandable 160GB via an external USB drive, it detects issues such as red-light leakage, fiber optic patch cords, near-end faults, and high-loss sections caused by micro-bending.

Feature

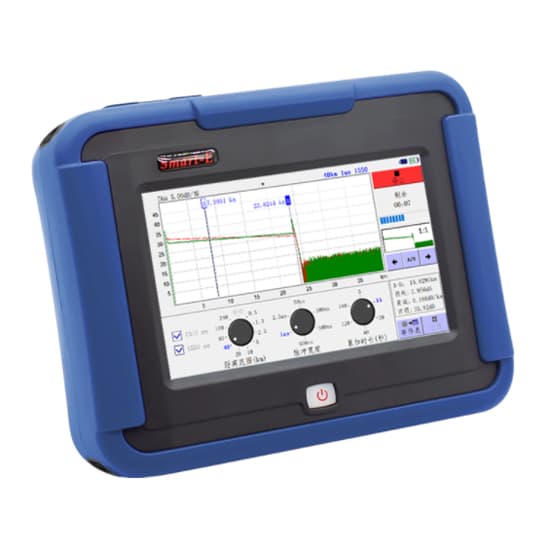

5-inch outdoor enhanced LCD touchscreen for smooth, real-time operation.
Embedded ARM processor with ultra-low power consumption.
Measures fiber optic cable length, loss, and splice quality, ideal for FTTH optical network testing.
Visible red light injection helps locate fiber faults by observing light leakage.
Suitable for detecting bare fibers, patch cords, fault points, and high-loss areas due to micro-bending.
Network line measurement detects breaks, short circuits, and disorder, supporting multiple line types and fault location.

Specification

Model	T-OT5F
Wavelength	1625nm
Dynamic Range	20dB
Filtering Characteristics	Yes
Pulse Width	5ns/10ns/20ns/50ns 100ns/300ns/1.0us/2.5us/10μs/20μs
Event Blind Zone	2m
Fading Blind Area	10m
Distance Range	0.5 to 160
Distance Uncertainty	±(1+0.005%x distance+sampling resolution)
Loss Measurement Accuracy	±0.05dB/dB
Fiber Type	Single-mode fiber
Storage	Bbuilt-in large capacity storage, external U disk to expand 160G storage space
Display Screen	5-inch high-definition LCD touch screen; 800 * 480 resolution
Capacitive Screen Touch Times	>10 million times

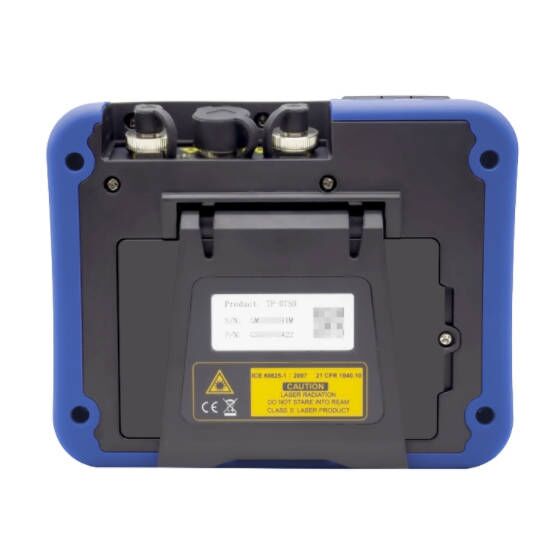

Standard Optical Interface	FC/SC/ST/LC optional
Battery	5000mAh; continuous: working time > 10 hours (according to Bellcore TR-NWT-001138)
Dimensions	210mmx160mmx45mm(LxWxH)
Weight	1 kg
VFL Cisual Light Source
Wavelength	650nm+20
Output Power	>1dBm
Standard Connector	FC/UPC
Optical Power Meter
Detector Type	InGaAs
Wavelength Range	800~1 700nm
Detection Range	-50~+ 1 6dBm
Calibration Wavelength	50, 980, 1300, 1310, 1490, 1550, 1 625nm
Linearity	5%
Flange Form	FC/SC/ST/LC optional
Light Source
Wavelength	1310/1550nm
Output Power	2- 7dBm

Details

Application

OTDR (Optical Time Domain Reflectometer) measures fiber attenuation, splice loss, and fault location by analyzing the backward scattered light as it propagates through the fiber. It provides detailed information on the loss distribution along the fiber’s length. This makes the OTDR tester a crucial tool for fiber optic cable construction, maintenance, and monitoring.

Tips: How to judge the fiber quality of OTDR?

Attenuation: High loss indicates poor fiber quality due to damage or excessive distance.
Splice Loss: Keep splice loss under 0.1 dB for good quality connections.
Reflection: Low reflection (ORL) is ideal; high reflection suggests poor fiber or connectors.
Event Map: Look for sudden drops or spikes in the trace, indicating faults like breaks or poor splices.
