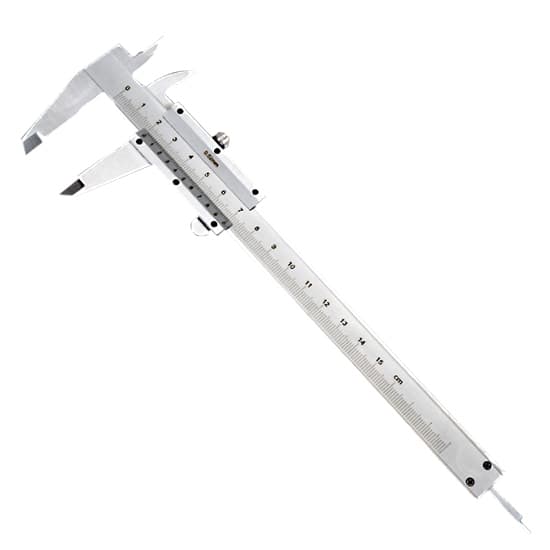

Best 6 inch / 150mm vernier caliper for sale is made of stainless steel with the measuring accuracy of metric 0.02mm. Thickened and polished ruler body, exquisite and smooth workmanship, corrosion-resistant, wear-resistant and durable.
Specification
| Type | Vernier caliper |
| Measuring range | 0-6 inch / 0-150mm |
| Resolution | 0.001 “(imperial), 0.02mm (metric) |
| Material | Stainless steel |
| Total length | 230mm |
| Outer measuring claw length | 40mm |
| Internal measuring claw length | 20mm |
| Package size | 245*90*19mm |
| Package weight | 245g |
| Package included | 1*Vernier caliper |
Details
Tips: How to read 6 inch / 150mm x0.02mm vernier caliper?
Generally, a depth gauge is attached to a vernier caliper with a measuring range of 0-150mm, and a vernier caliper with a measuring range equal to and greater than 200mm is equipped with a micro-movement device that can be adjusted with the frame. The reading of the vernier caliper is composed of the readings of the main ruler and the vernier ruler. The integer part of the part size can be read out on the main ruler engraved line on the left of the vernier zero line, and the fractional part smaller than 1mm can be read out with the help of a vernier reading mechanism. The vernier caliper with an accuracy of 0.02mm is a 50-degree vernier caliper. A small division on the main ruler is 1mm, and the total length of the vernier is 49mm. The 49mm is divided into 50 divisions, each division is 0.98mm. Therefore, each division of the vernier caliper is 0.02mm smaller than the normal 1mm. This vernier caliper can be accurate to 0.02mm. The last position of the 50-gradient caliper reading can only be 0/2/4/6.
