Name: Telescope Laser Distance Meter, 600/800/1000/1500m
Brand: Tool
SKU: 1390
Availability: InStock

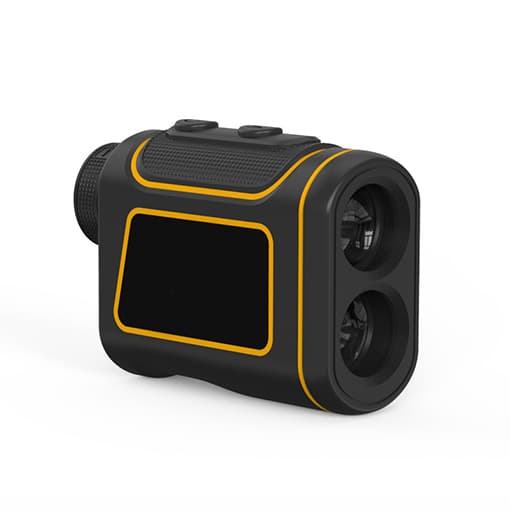

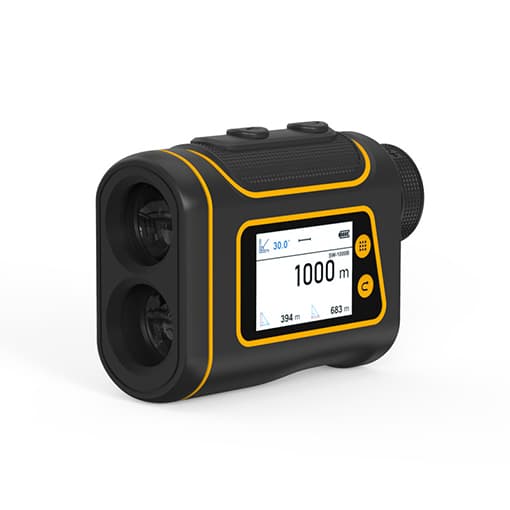

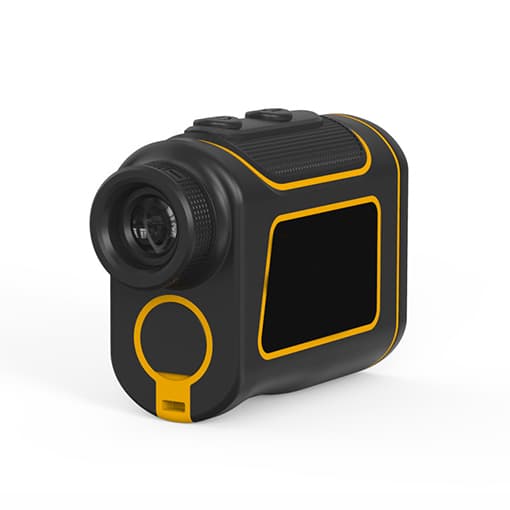

Telescope Laser Distance Meter, 600/800/1000/1500m

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

Provided by high quality suppliers, the affordable telescope laser rangefinder can cover a measuring range of 600 meters to 1500 meters.Built-in flagpole locking with height and angle measurement function to meet diversified use scenarios. The laser rangefinder has IP54 protection level and can be used normally in the range of -10℃~50℃.23.5mm large-diameter lens and 6x magnification ensure a wide field of view.

Specification

Model	T-SW-600A/1000A/1500A
Measuring Range	600m-1500m
Magnification	6X ±5%
Field of View	7.0° ±5%
Scanning Ranging Function	Yes
Reading Error	± (1.0m+D x 0.3%)
Speed Measurement Accuracy	± 5 Km/h
Speed Measurement Range	0~300 Km/h
Height Measurement	Yes
Flagpole Locking	Yes
Angle Range	± 90°
Diopter Adjustment Range	± 6°
Units of Distance	m/Y
Objective Caliber	23.5mm
Eyepiece Caliber	15.0mm
Exit pupil Caliber	3.7mm ± 0.5
Battery	750mAh Li-ion
Battery Life	Charge-discharge 800 times
Operating Times	30000 times (at full charge)
Protection Grade	IP54
Operating Temperature	-10℃~ 50℃
Dimensions	10474.540.5 mm
Laser Level	Class 1
Laser Wavelength	905nm
Net Weight	450g
Note	For the parameters of T-SW-800B/1000B/1500B, please click the pdf below.

ATTENTION: The maximum range is based on the light-coloredbuilding measurement. Weather, target size, surface shapeetc., can have an effect on the maximum range.

Telescope Laser Distance Meter Document

Telescope Laser Distance Meter User Manual 600 to 1500m.pdf
Telescope Laser Distance Meter User Manual 800 to 1500m.pdf

Telescope Laser Distance Meter Deatail

Telescope Laser Distance Meter Multiple Measurement Methods

Tips: What is the max measurement distance of a telescopic laser distance meter?

The measuring distance of most telescopic laser rangefinders depends on the model and environmental conditions. Typically, the maximum measuring distance of such devices ranges from 500 to 1500 meters. Factors that affect the measuring distance include the reflectivity of the target, light conditions and atmospheric conditions. It is recommended to use them during the daytime, when the target has a high reflectivity, for best results.
