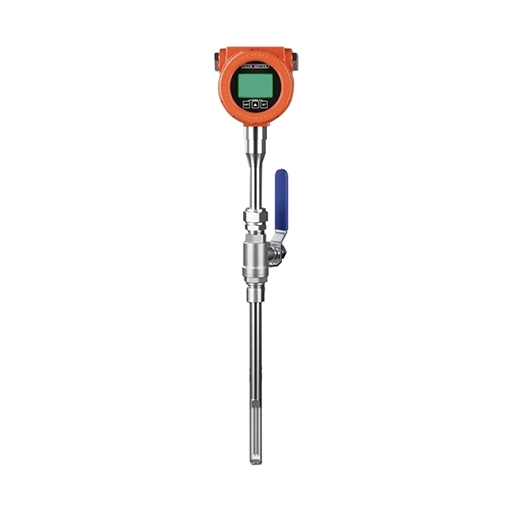

Thermal Mass Flow Meter for Gas, DN65-DN1000
Price range: $203.99 through $327.06
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
High accuracy thermal mass flow meter for sale (for DN65-DN1000 pipe diameter, port size optional) with high accuracy measurement capability, accuracy of ± 2.5%. With plug-in design, it is suitable for measuring many common steady-state gases. It supports a variety of output signals (4-20 mA, RS485) and is equipped with an LCD display to show flow data in real time.
Specification
| Model | T-SUP-MF |
| Structural Form | Plug-in type |
| Measuring Medium | Common steady state gas |
| Pipe Diameter Range | DN65, DN100, DN200, DN300, DN400, DN500, DN600, DN700, DN800, DN900, DN1000 (optional) |
| Velocity Range | 0.1-100 Nm/s |
| Accuracy | ±2.5% |
| Working Temperature | Sensor: -40 ℃ ~ 300 ℃; Converter: -20 ℃ ~ 45 ℃ |
| Pressure | ≤2.5 MPa |
| Power Supply | AC 220V; DC 24V |
| Response Speed | 1s |
| Output Signal | 4-20 mA, RS485 |
| Alarm | 1-2 normally open contacts |
| Display | Liquid crystal display |
| Sensor Material | Stainless steel |
| Level of Protection | IP65 |
Thermal Mass Flow Meter for Gas Document
- Thermal Mass Flow Meter for Gas User Manual.pdf
Thermal Mass Flow Meter for Gas Dimension: (Unit: mm)
| Port Size | A | B |
| DN65-DN200 | 431mm | 250mm |
| DN200-DN500 | 551mm | 370mm |
| DN500-DN1000 | 811mm | 630mm |
Thermal Mass Flow Meter for Gas Features
- Thermal gas mass flow meter is simple in design, easy to install, and requires minimal routine maintenance, suitable for a variety of industrial environments.
- With excellent shock resistance, it is able to operate stably in vibration environments and has a long service life, reducing the frequency of replacement.
- Accurate flow measurement without additional temperature and pressure compensation simplifies operation and improves measurement efficiency.
- Supports RS485 or HART communication protocol, realizing factory automation and system integration, and enhancing the intelligence of production lines.
Thermal Gas Mass Flow Meter Applications
Tips: How to install and maintain a thermal mass flow meter for gas?
Thermal gas mass flow meters are easy to install, usually only need to be connected to the pipeline and ensure smooth airflow. Vibration and high temperature environments should be avoided during installation to ensure measurement accuracy. For maintenance, the flow meter requires little regular maintenance as there are no moving parts. However, regular calibration and cleaning of the sensor will ensure its long-term stable operation.
| Port Size * | , , , , , , , , , , |
|---|---|
| Output * | , , , |
| Temperature (℃) | , , |
