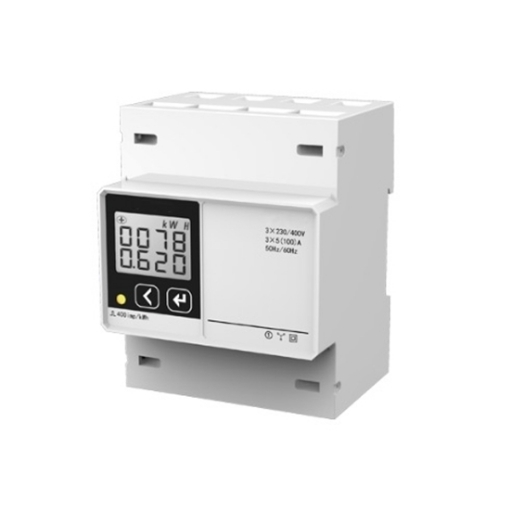

The three-phase digital energy meter is a modular device mounted on a 35mm DIN rail, measuring active energy through the current between input and output. The three-phase energy meter is equipped with large buttons, easy to operate, and has a simple and easy-to-use operating interface. It has the advantages of low power consumption, high accuracy, high overload, and anti-theft.

Specification

Model	T-DTS1946-4P
Accuracy Grade	Grade-1 accuracy for active energy
Phase	Three-phase (4-wire)
Number of Poles	4P
Rated Voltage	3×230/400V AC
Current Direct Input	5(100)A
Frequency	50/60Hz
Display Mode	LCD display
Display Digits	4
Energy Pulse	1 active energy pulse output, pulse width (80±20%) ms
Measurement Range	Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface	Modbus-RTU protocol, baud rate up to 9600bps
IP Protection	IP54 (panel) /IP20 (case)
Certificate	CE/ ISO/ MID
Warranty Period	12 months
Dimension	726390mm
Weight	1.8kg
Installation	Din rail 35mm
Work Temperature	-10℃~55℃
Storage Temperature	-25℃~70℃

Dimension (unit=mm)

Wiring

Tips: How does the energy meter work?

The energy meter is connected to the circuit to be measured.
The voltage coil is connected to the power supply, generating a magnetic field proportional to the voltage.
The current coil is connected in series in the circuit, generating a magnetic field proportional to the current. The two magnetic fields interact with each other, inducing eddy currents in the turntable.
The eddy currents and magnetic fields generate a torque that causes the turntable to rotate, and the speed is proportional to the power consumption.
The counter records the number of turntable revolutions and converts it into an energy reading (such as kilowatt-hours, kWh).
