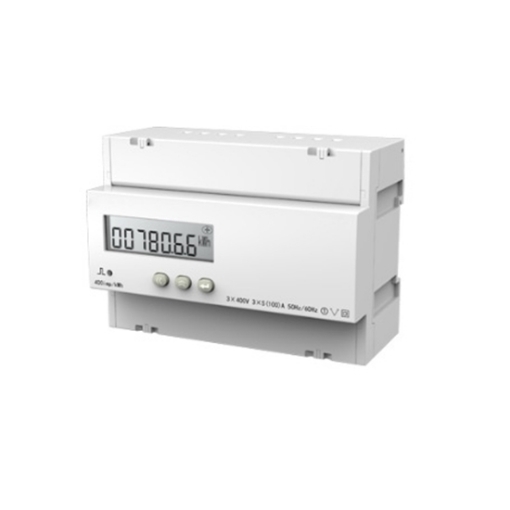

The digital kWh meter is a 3-phase 4-wire meter with Class 1 accuracy and 800 pulses per kWh. The three-phase digital kWh meter uses a high-contrast segmented LCD screen and durable probe, electronic measurement, high accuracy, small error, and no adjustment required for long-term use.

Specification

Model	T-DTS1946
Accuracy Grade	Grade-1 accuracy for active energy
Phase	Three phase (4 wire)
Rated Voltage	3×230/400V AC
Current Input	Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency	50/60Hz
Display Mode	LCD display
Display Digits	7
Energy Pulse	1 active energy pulse output, pulse width (80±20%) ms
Measurement Range	Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface	Modbus-RTU protocol, baud rate up to 9600bps
IP Protection	IP54 (panel) /IP20 (case)
Certificate	CE/ ISO/ MID
Warranty Period	12 months
Dimension	1266690mm
Weight	2.5kg
Installation	Din rail 35mm
Work Temperature	-10℃~55℃
Storage Temperature	-25℃~70℃

Dimension (unit=mm)

Wiring

Tips: Single Phase Energy Meter vs. Three Phase Energy Meter

Power supply type: Single phase energy meter is connected to 1 live wire + neutral wire, and three phase energy meter is connected to 3 live wires + neutral wire.
Application scenario: Single phase energy meter is used for household/low-power appliances, and three phase energy meter is used for industrial/high-power equipment (such as motors).
Functional complexity: Three phase energy meter supports phase measurement and power factor monitoring, while single phase energy meter has relatively simple functions.
