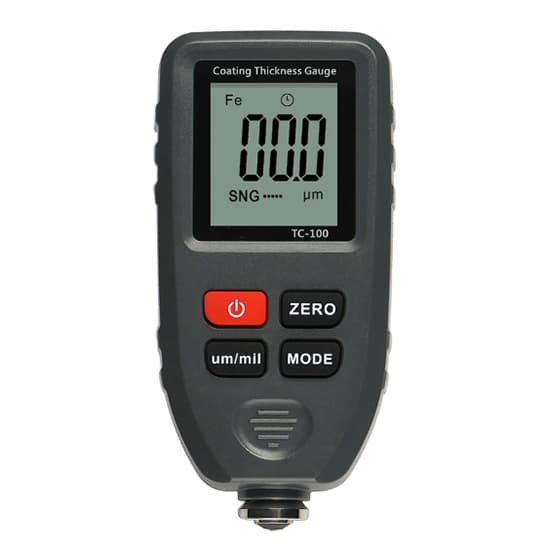

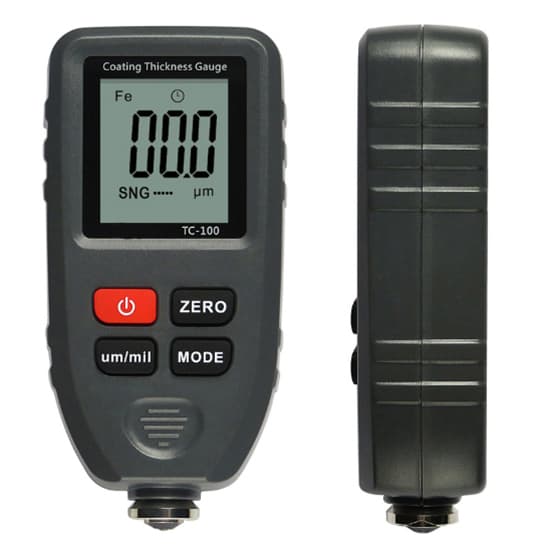

Good price coating thickness tester for measuring the thickness of automobile paint, both ordinary paint/ metal paint can be measured. It is a thickness measuring tool that can work stably in laboratories, workshops and outdoors.

Specification

Model	T-TC-100
Sensing Probe	Ferromagnetism	Non-Ferromagnetic
Working Principle	Electromagnetic Induction	Eddy Current Effect
Measuring Range	0-1300μm	0-1300μm
Accuracy	±3%+2μm	±3%+2μm
Resolution	0.1μm	0.1μm
Minimum Thickness	0.5mm	0.3mm
Minimum Curvature Radius	1.5mm
Minimum Measuring Area (Diameter)	6mm
Unit	μm/ mil

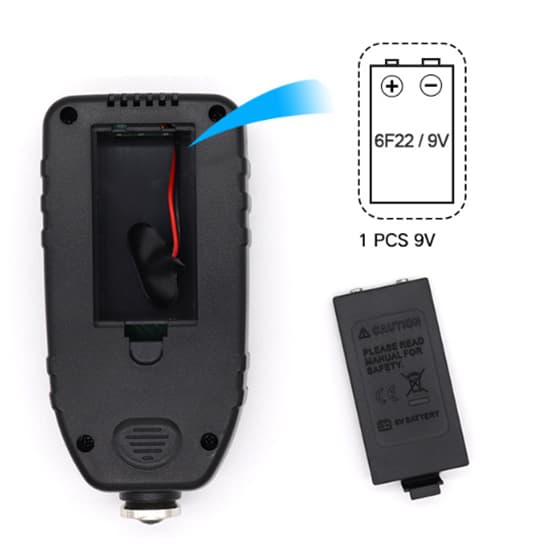

Power Supply	9V
Operating Environment	Temperature: 0-40℃ (32-104°F) Humidity: 20%-90%RH No Strong Magnetic Field

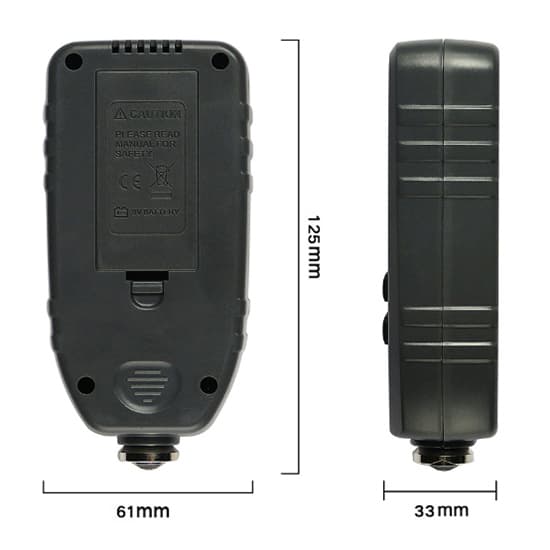

Dimensions	125mm61mm33mm
Net Weight	0.1kg
Package Weight	0.4kg

Details

Tips: Troubleshooting of the coating thickness gauge

The display value of the dry film thickness gauge is unstable. The display value of the paint thickness gauge is unstable, mainly due to the particularity of the material and structure of the workpiece itself. For example, whether the workpiece itself is a magnetic material, if it is a magnetic material, we must choose a magnetic coating thickness gauge. If the workpiece is a conductor, we have to choose an eddy current coating thickness gauge. In addition, the surface roughness and attachments of the workpiece are also one of the reasons for the instability of the display value of the car paint thickness gauge, such as excessive surface roughness of the workpiece and too many surface attachments. The method of troubleshooting is to smooth the workpiece with relatively large roughness and remove the attachment.
The measurement result error is too large. The main reasons for the large measurement error of the coating thickness meter are: Base metal magnetization, too small base metal thickness, edge effects, too small curvature of the workpiece, excessive surface roughness, magnetic field interference, incorrect placement of the probe, etc.
The paint thickness gauge does not display numbers. Check whether the battery is fully charged. If the measurement still does not display the value after determining that the battery is fully charged, consider replacing the paint thickness meter with a new one.
