Name: 1" Air Impact Wrench, 2400 ft/lb, 3600rpm
Brand: Tool
SKU: 1244
Availability: InStock

1″ Air Impact Wrench, 2400 ft/lb, 3600rpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

73 People watching this product now!

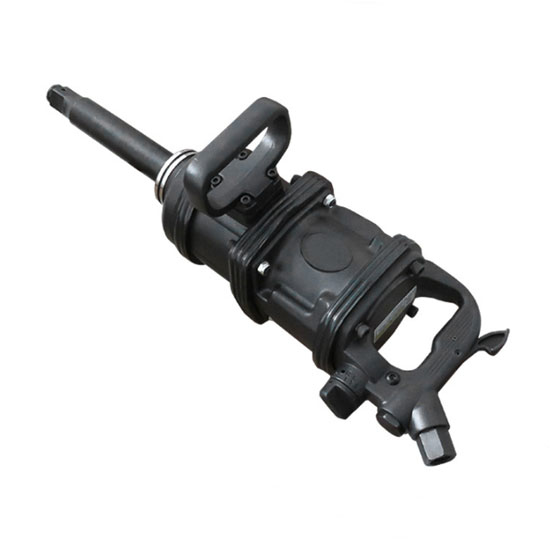

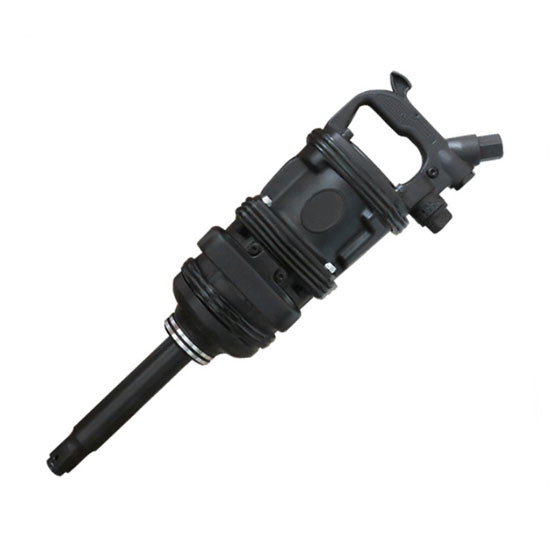

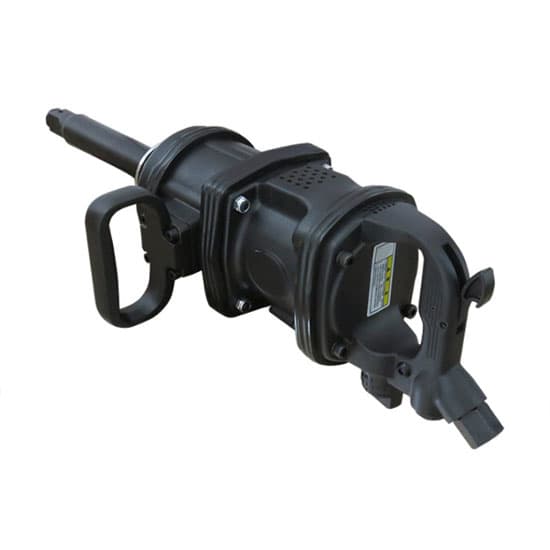

1″ heavy duty pinless air impact wrench is suitable for medium and large automotive and mechanical equipment applications, best air tool for loosening and tightening lug nuts or bolts and changing vehicle tires.

Features

1-in. drive size air impact with high strength construction, durable and long use life.
Delivering 2400 ft/lb (3260Nm) max. torque, powerful air impact with high effciency.
Forward/reverse speed-control switch, easy to change the direction.
Designed with 8 inch extended anvil for deep reach.
Pin less impact mechanism, strong strike yet low vibration.

Specification

Model	T-AIW-12400
Bolt Capacity	1 inch
Working Pressure	94 – 145 PSI (0.65 – 1.0 MPa)
Air Inlet Size	1/2 inch
Hose Size	13mm
Bolt Capacity	50mm
Air Consumption	0.5 M³/Min
Maximum Torque	2400 ft/lb (3260Nm)
No Load Speed	3600rpm
Power Source	Air Powered
Body Dimension	650mm * 140mm
Weight	18kg

Note: If you cannot find 1″ air impact wrench with requried torque, please feel free to contact us.

Details

6 Tips for Using an Air Impact Wrench

Pay attention to the position of the speed-control switch before you use the air impact wrench so that you know the direction of rotation when operating the intake valve.
Please ensure that the compressed air into the wrench pneumatic motor is the maximum atmospheric pressure of 0.6MPa clean dry air. Otherwise, dangerous conditions such as driveline failure, rupture, output torque errors are inevitable.
Ensure that all hoses and other connecting devices are correctly and securely mounted. Don’t use worn or aged air hoses and other connecting devices.
Before operating the pneumatic impact wrench, be sure to check whether there is enough lubricating oil in the oil cup. In the absence of lubrication, it will speed up wearing the pneumatic motor blades, resulting in reduced the tool performance.
Operate the air tool steadily. During the opening and operation of the tool, be aware of sudden changes in torque and force during the movement.
If the hose fails or the connection breaks, a suitable size air safety device can be installed upstream of the hose, and in case the hose is open inside, a firm device can be used through any hose connection to prevent the hose from swinging.
