Name: 12 inch Distance Measuring Wheel, Mechanical Gear
Brand: Tool
SKU: 1508
Availability: InStock

12 inch Distance Measuring Wheel, Mechanical Gear

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

17 People watching this product now!

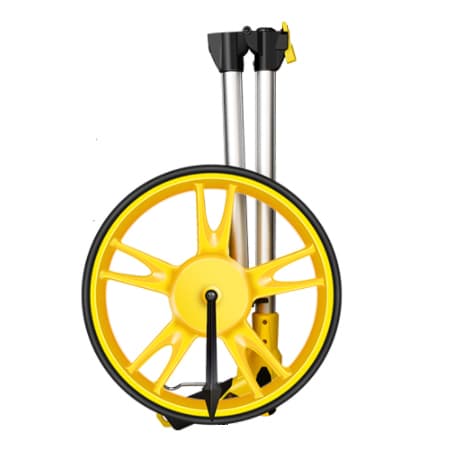

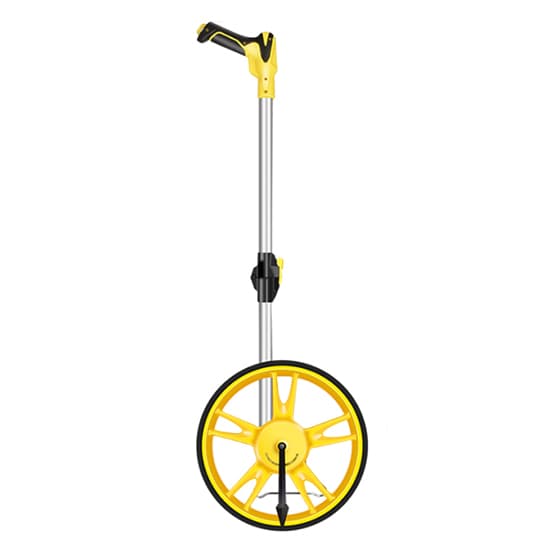

Wholesale walking measuring wheel at lower price, features 12 inch (320mm) wheel diameter, mechanical gear running count with reset device, +/- 0.5% accuracy, a built-in carrying handle making it easy to transport and store in the backpack. It is a perfect tool for long distance measuring.

Specification

Model	T-DMW-12M
Measuring Range	99999.9m
Wheel Diameter	12 inch (320mm)
Drive	Mechanical gear running count
Dispaly Mothod	Mechanical dial
Accuracy	+/- 0.5%
Display Accuracy	0.1m
Thickness of Tires	7mm
Weight	1.1kg

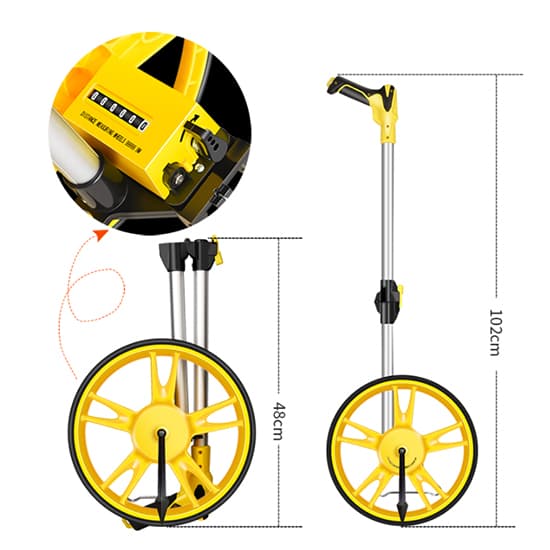

Folding Length	48cm
Extension length	102cm

Applications

Tips: Steps for measuring distance with measuring wheel

Take the distance measuring wheel out of the packaging bag.
Unfold the measuring wheel, hold the handle with one hand and the handle branch tube with the other. Straighten the telescopic rod first, adjust the sleeve of the folding rod so that the upper and lower handle rods are locked and become straight to prevent bending during use.
Press the reset button on the side to reset the value to zero.
The pointer of the dimension line of the measured length is centered and perpendicular to the dimension line.
The pointer at the bottom of the wheel is aligned with the starting position of the measurement, and the handle is held to push the wheel to rotate forward, and the counter starts counting. When the pointer is aligned with the end of the measurement, read the value of the counter. (After the distance measuring wheel is pushed to the destination to be measured, the pointer of the measured dimension line should still be kept perpendicular to the center of the dimension line)
After use, press the zero button to reset the value to zero.
Finally, you can step on the foot support at the bottom of the gauge wheel.
Stand the distance measuring wheel aside and wait for the next use.
