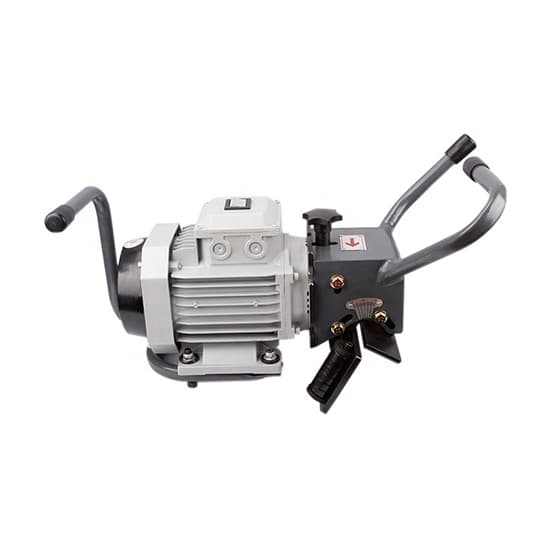

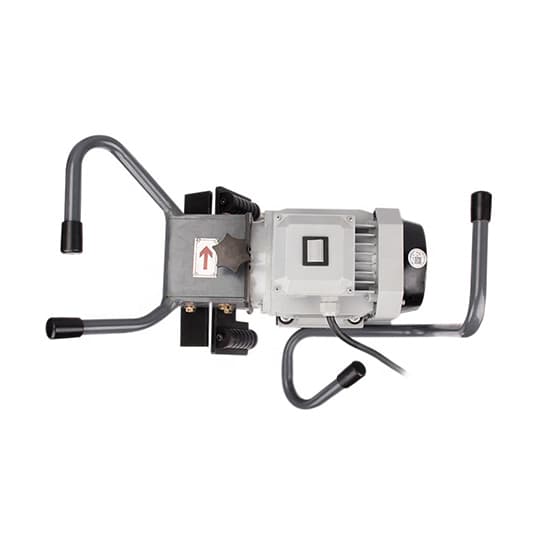

The beveling/chamfering machine can be used in beveling, deburring and chamfering for metal pipes and plates before welding. Applicable materials include steel, cast iron, hard plastic, non-ferrous metals, etc. It is the best electric chamfer tool with good price.

Specification

Model	T-CFM-SKF15
Max. Cutting Edge Width	15mm (adjustable)
Chamfering Angle	30°~60°
Rotation Speed	2870rpm
Rated Power	1.1kw
Voltage	380V
Warranty	1 year
Weight	18 kg
Supplementary Tools	φ66mm butterfly milling cutter*2, each has 6 pieces high-speed carbon steel embedded milling cutter blades

Features

Chamfering width and chamfering angle are adjustable. Cutting piece is standard piece, easy to replace. Milling cutter disk is roller type, which improves efficiency and saves mold making time.
Beveling chamfering machine has compact structure, portable design, hand-held operation, easy to move. Small vibration, stable operation, precise and safe.

Operation Demonstration and Chamfering Effect

Structure Diagram of Portable Plate/Pipe Beveling Chamfering Machine

Applicable Materials

Tips: What is a beveling chamfering machine?

Bevel is a groove with a certain geometric shape on workpiece. Beveling is mainly for welding workpiece and ensure welding degree. Beveling machine can be used to process the required profile for the parts to be welded of workpiece.
Chamfering is a process for cutting the edges and corners of workpiece into a certain bevel. Chamfering is to remove the burrs on parts due to machining, and also to facilitate parts assembly. Generally, chamfering is made at the end of parts.
Beveling chamfering machine is a portable machine tool integrating beveling machine and chamfering machine.
