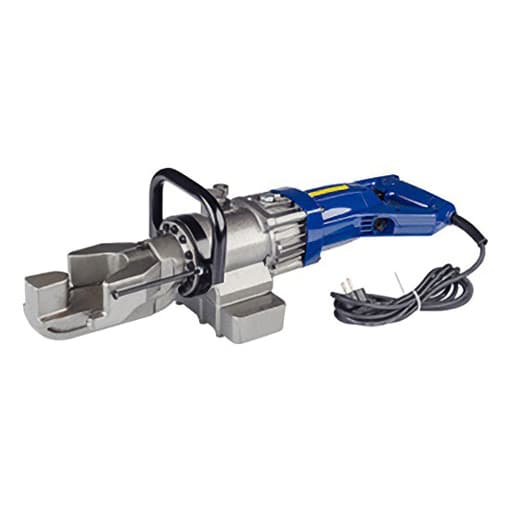

Name: 5/8" Electric Rebar Bender, 800W/900W
Brand: Tool
SKU: 202
Availability: InStock

5/8″ Electric Rebar Bender, 800W/900W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

The electric rebar bender is portable hydraulic rebar bending machine with high strength. Driven by 220V/110V AC, rapid bending and short time. Applicable materials are low/medium carbon steel, round steel and rebar.

Specification

Model	T-HRB-16
Rated Voltage	110V, 220V
No-Load Power	800W, 900W
Bending Range	Ф4-Ф16mm (5/8 inch)
Bending Angle*	0~130°
Bending Speed	5s
Machine Length	600mm
Packing	iron box
Weight	14.6 kg

*Note: Bending 90°, rebar diameter should be 10-16mm. Rebar diameter ＜10mm, bending angle cannot reach 90°.

Features

Electric rebar bender has long bolt rod limits the stroke, to achieve precise bending.
When the bending is completed or there is an error in the middle, piston can be returned to the starting position by manual reset button.
The electric rebar bender is specially used for bending steel bars and various rebar rods.

Electric Rebar Bender Structure Diagram

Electric Rebar Bender Applications

Rebar Bending Effect Diagram

Tips: Preparations before using electric rebar bender.

Check whether the mechanical properties of the electric rebar bender are good. Workbench and rebar bender surface should be kept level. Prepare various mandrels and tool blocks.
Install mandrel according to rebar diameter and the electric rebar bender manual, make it to form profile shaft. Mandrel diameter of the blocking iron shaft or the variable block should be 2.5 times the steel bar diameter.
Check the mandrel. The block and turntable must be no damage and cracks, protective cover must be fastened and reliable.
After starting the electric rebar bender, run it without load for a period of time, and start operation after confirming that it is normal.
