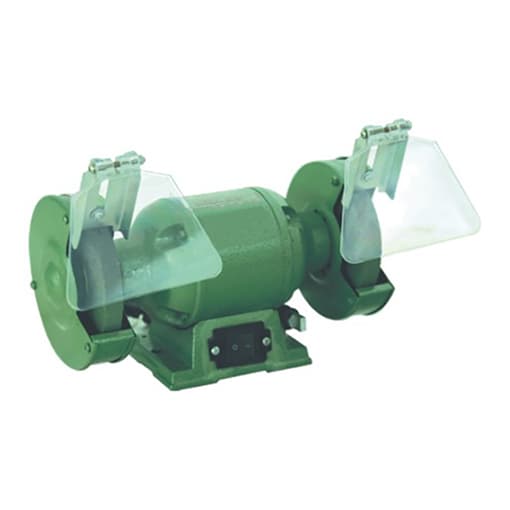

Name: 5" Bench Grinder, 1/5 HP, 0.7A
Brand: Tool
SKU: 173
Availability: InStock

5″ Bench Grinder, 1/5 HP, 0.7A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

14 People watching this product now!

Bench grinder is a kind of grinding machine with a 5 inch (125mm) grinding wheel, it is used to grind and polish small tools, cutters and parts. Small size, compact structure, portable and convenient for use.

Specification

Model	T-MD3212
Rated Power	1/5 HP (150W)
Rated Voltage	Single-Phase 220V
Rated Current	0.7A
No-Load Speed	2850 rpm
Wheel Diameter	5 Inch (125mm)
Wheel Thickness	20mm
Wheel Hole Diameter	12.7mm
Wheel Type	brown corundum grinding wheel
Work Quota	40%
Temperature Rise	75℃
Weight	9 kg

Bench Grinder Structure Diagram

Bench Grinder Applications

Grinding tools
Grinding drill bits
Processing metal
Processing stone

Tips: Precautions for using bench grinder.

Wear goggles and a mask when using bench grinder.
When the grinding time is long, bench grinder should be cooled in time.
Select the grinding wheel that matches spindle speed of bench grinder.
Distance between grinding wheel and tool holder should be less than 3mm.
Regularly repair the balance of grinding wheel surface to keep it in good condition.
Stop operation during inspection, maintenance and clearance adjustment.
When grinding wheel is shaking, no protective cover, tool holder is worn, and clamping is not firm, bench grinder cannot be used.
It is forbidden to use bench grinder for grinding workpieces that are too large or too small, difficult to control by hand, and nonferrous metals, etc.
