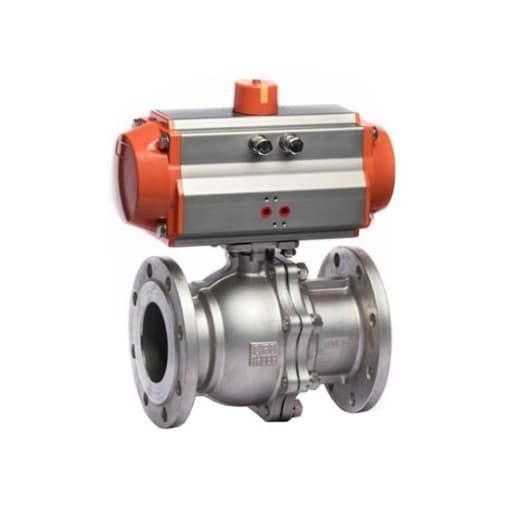

Name: 6" Pneumatic Actuated Flanged Ball Valve, 2 Way
Brand: Tool
SKU: 1258
Availability: InStock

6″ Pneumatic Actuated Flanged Ball Valve, 2 Way

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

41 People watching this product now!

Note: This ball valve cannot be used for drinking water.

Industrial 6 inch 2 way large full port ball valve with pneumatic actuator is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid service.

Specification

Ball Valve	Model	T-Q641F-16P-DN150
	Ball Valve Type	2 Way Flanged Type
	Port Size	6 inch (DN150, 150mm)
	Environment Temperature	-10℃ to 60℃
	Medium Temperature	-10℃ to 180℃
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)
Pneumatic Actuator	Model	T-AT190D
	Bore Size	190mm
	Air Supply Port	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q: Φ102/Φ125mm
A: 450mm
B: 193mm
C: 89mm
D: 104mm
E: 226mm
F: 197mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4″
O: 30mm
P: 80mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

Tips: How to Select a Pneumatic Actuated Ball Valve?

1. Conveying material medium
2. Temperature requirement for the medium
3. Power source and body material
4. Connection mode, port diameter and pressure requirement
5. Other requirements of working conditions, such as anti-explosion, structure length, etc.
