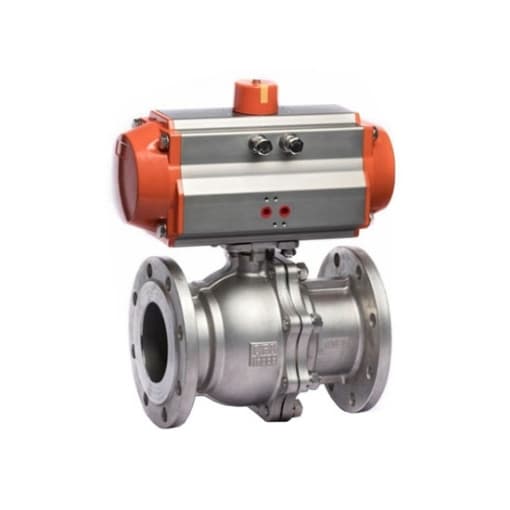

8″ Pneumatic Actuated Flanged Ball Valve, 2 way
Original price was: $4,908.79.$490.99Current price is: $490.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Note: This ball valve cannot be used for drinking water.
Industrial 8 inch 2 way large full port ball valve with pneumatic actuator is a control valve used for water, oxygen, gas, nitrogen gas, gasoline and other high temperature air and fluid service.
Specification
| Ball Valve | Model | T-Q641F-16P-DN200 |
| Ball Valve Type | 2 Way Flanged Type | |
| Port Size | 8 inch (DN200, 200mm) | |
| Environment Temperature | -10℃ to 60℃ | |
| Medium Temperature | -10℃ to 180℃ | |
| Medium Pressure | 1.6MPa | |
| Seat Material | Plastic (PTFE) | |
| Body Material | Stainless Steel (SS 304) | |
| Pneumatic Actuator | Model | T-AT240D |
| Bore Size | 240mm | |
| Air Supply Port | 1/4 inch | |
| Power Source | Compressed Air | |
| Actuator Type | Double Acting | |
| Air Pressure | 0.3 ~ 0.8MPa | |
| Actuator Body Material | Aluminum Alloy |
Pneumatic Actuator Dimension
| Q: Φ140mm A: 530mm B: 226mm C: 113mm D: 113mm E: 297mm F: 257mm G: 30mm H: 130mm I: PF J: M6 K: 1/4″ O: 30mm P: 90mm S: 4mm T: 4mm U: 12mm V: 24mm W: 16mm X: 32mm |
Body Dimension
Tips: What kind of media is this 8 inch pneumatic flanged ball valve suitable for?
Pneumatic flanged ball valves are widely used in a variety of media, including “water”, “oil”, “gas” and “steam”. Water”, ‘Oil’, ‘Gas’ and ‘Steam’. Due to its corrosion-resistant material construction, it performs well in the fields of “chemical industry, oil, gas, water supply system”, etc. The sealing design enables it to handle “water”, “oil”, “gas” and “steam”. The sealing design enables it to handle “high temperature, high pressure” and “corrosive” fluids, making it particularly suitable for industrial applications requiring high sealing performance.
