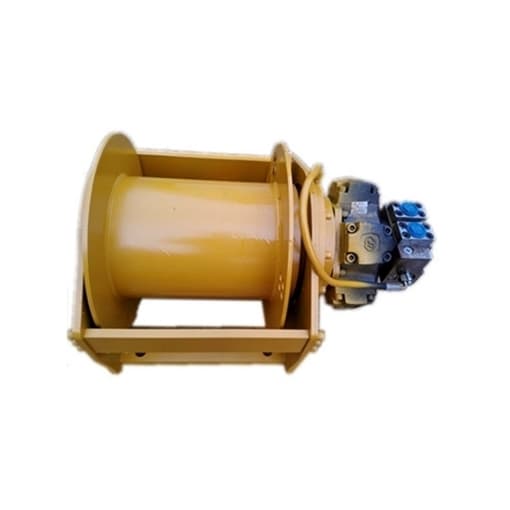

Name: 8000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer
Brand: Tool
SKU: 253
Availability: InStock

8000 lbs Hydraulic Winch for Tractor/Truck/Skid Steer

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

57 People watching this product now!

A hydraulic winch utilizes hydraulic power to reel in or release a cable or rope, making it ideal for heavy-duty applications like towing, construction, and off-road vehicles. The hydraulic system delivers the essential force and precision needed for efficient pulling and lifting tasks.

Specification

Model		T-HW50S-40
The 1st Layer	Pull	8000 lbs (4 ton)
	Rope Speed	0~45 m/min
Working Pressure Differential		16 Mpa
Oil Flow Supply		120 L/min
Rope Diameter		14mm
Hydraulic Motor		BMR-300
Planetary Reduction Ratio		1:6

Layer		Wire Rope Capacity
1		21m
2		44m
3		70m
4		97m
5		125m

Note: Never exceed working load limit.

Dimensions (Unit: mm)

Tips: How to Install a Hydraulic Winch

Installing a hydraulic winch requires careful planning and attention to detail for safe and optimal performance. Here’s a step-by-step guide:

Choose the Right Mounting Location: Select a sturdy, flat surface on your vehicle or equipment, typically on the front or rear frame, to ensure stability during operation.
Secure the Winch Mount: Attach the winch mount using heavy-duty bolts and brackets suited to the load capacity. Double-check that it’s tightly fastened to prevent movement during use.
Connect Hydraulic Lines: Attach the hydraulic hoses from the winch to the hydraulic system. Ensure all fittings are secure and check for compatibility to avoid leaks or system strain.
Check Hydraulic Fluid Levels: Verify that the hydraulic system has adequate fluid levels for smooth operation. Insufficient fluid can lead to reduced performance or damage.
Install Control System: Mount the control switch or lever in a convenient location within reach. Connect it to the winch, ensuring the wiring or hydraulic controls are secure.
Test the Winch: Power on the hydraulic system and run a few test cycles. Check for smooth movement, leaks, or unusual sounds, adjusting any connections as necessary.
Inspect Before Use: Once installed, inspect the winch, hydraulic lines, and mounts regularly to maintain safe and efficient operation.

Following these steps will help ensure a secure installation and reliable performance from your hydraulic winch.
